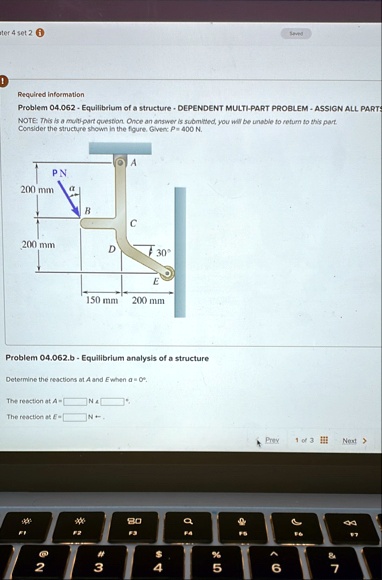

Problem 04.062 - Equilibrium of a structure - DEPENDENT MULTI-PART PROBLEM - ASSIGN ALL PARTS
NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part.
Consider the structure shown in the figure. Given: P = 400 N.
PN
200 mm
α
B
C
200 mm
D
30°
E
150 mm
200 mm
Problem 04.062.b - Equilibrium analysis of a structure
Determine the reactions at A and E when α = 0°.
The reaction at A =
N∠
°.
The reaction at E =
N←.
