Parameter
NIMOS
PMOS
$V_{TO}$ +0.8 V -0.8 V
$\gamma$ 0.5 $V^{1/2}$ 0.5 $V^{1/2}$
$\lambda$ 0.6 V 0.6 V
$K'$ 100 $\mu A/V^2$ 40 $\mu A/V^2$
$L_{min}$ 0.25 $\mu m$ 0.25 $\mu m$
$C_{ox}$ 20 fF/$\mu m^2$ 20 fF/$\mu m^2$

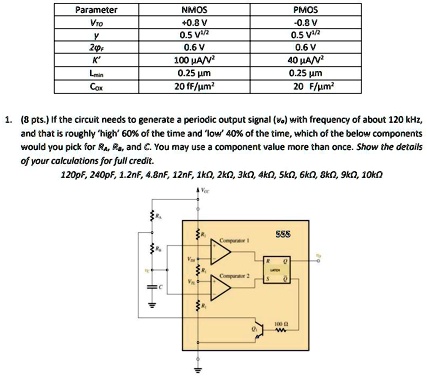

1. (8 pts.) If the circuit needs to generate a periodic output signal ($v_o$) with frequency of about 120 kHz,
and that is roughly 'high' 60% of the time and 'low' 40% of the time, which of the below components
would you pick for $R_a$, $R_b$, and C. You may use a component value more than once. Show the details
of your calculations for full credit.
120pF, 240pF, 1.2nF, 4.8nF, 12nF, 1k$\Omega$, 2k$\Omega$, 3k$\Omega$, 4k$\Omega$, 5k$\Omega$, 6k$\Omega$, 8k$\Omega$, 9k$\Omega$, 10k$\Omega$
