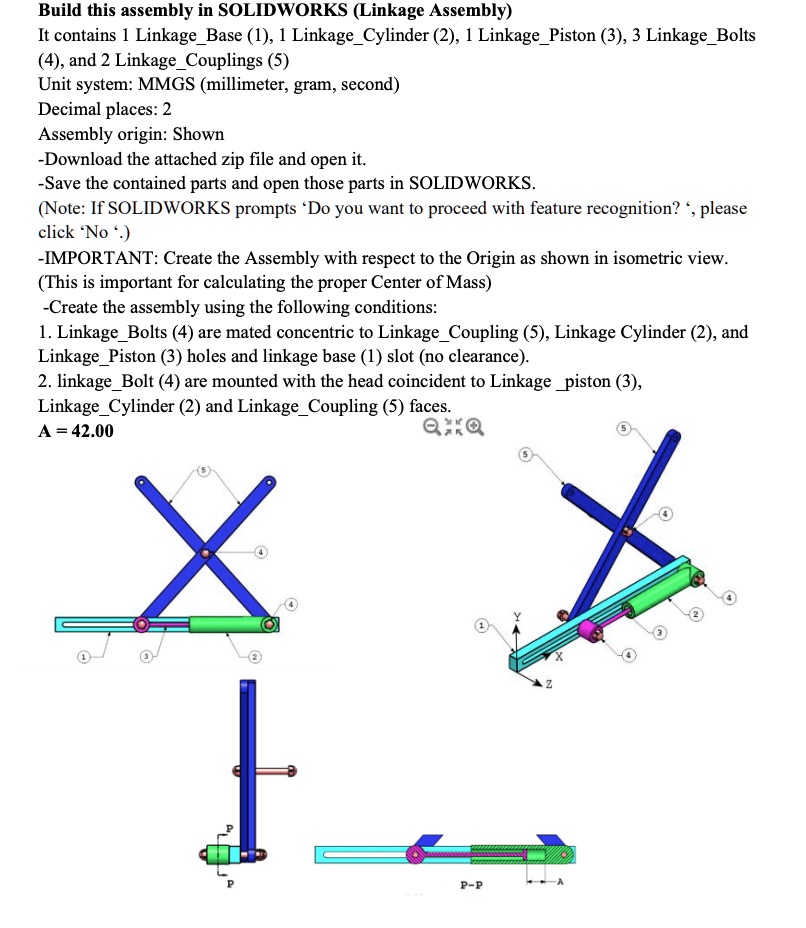

Build this assembly in SOLIDWORKS (Linkage Assembly)
It contains 1 Linkage_Base (1), 1 Linkage_Cylinder (2), 1 Linkage_Piston (3), 3 Linkage_Bolts
(4), and 2 Linkage_Couplings (5)
Unit system: MMGS (millimeter, gram, second)
Decimal places: 2
Assembly origin: Shown
-Download the attached zip file and open it.
-Save the contained parts and open those parts in SOLIDWORKS.
(Note: If SOLIDWORKS prompts 'Do you want to proceed with feature recognition?', please
click 'No '.)
-IMPORTANT: Create the Assembly with respect to the Origin as shown in isometric view.
(This is important for calculating the proper Center of Mass)
-Create the assembly using the following conditions:
1. Linkage_Bolts (4) are mated concentric to Linkage_Coupling (5), Linkage Cylinder (2), and
Linkage_Piston (3) holes and linkage base (1) slot (no clearance).
2. linkage_Bolt (4) are mounted with the head coincident to Linkage_piston (3),
Linkage_Cylinder (2) and Linkage_Coupling (5) faces.
A = 42.00
