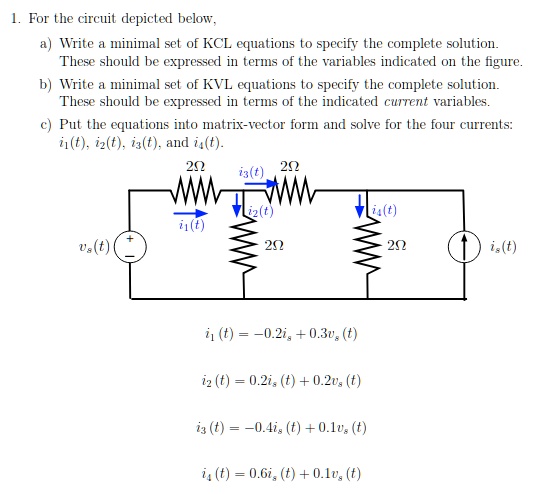

1. For the circuit depicted below,
a) Write a minimal set of KCL equations to specify the complete solution.
These should be expressed in terms of the variables indicated on the figure.
b) Write a minimal set of KVL equations to specify the complete solution.
These should be expressed in terms of the indicated current variables.
c) Put the equations into matrix-vector form and solve for the four currents:
i?\(t\), i?\(t\), i?\(t\), and i?\(t\).
2?
2?
i?\(t\)
i?\(t\)
i?\(t\)
+
v?\(t\)
-
2?
i?\(t\)
W
2?
i?\(t\)
i?\(t\) = -0.2i? + 0.3v?\(t\)
i?\(t\) = 0.2i?\(t\) + 0.2v?\(t\)
i?\(t\) = -0.4i?\(t\) + 0.1v?\(t\)
i?\(t\) = 0.6i?\(t\) + 0.1v?\(t\)
