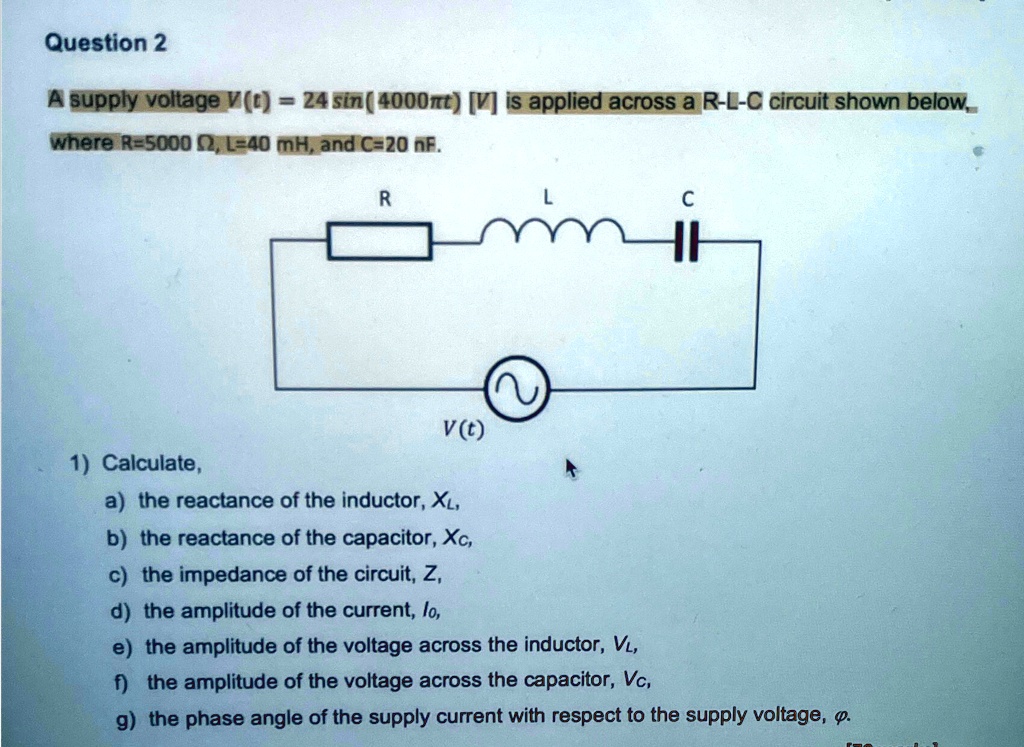

Question 2
A supply voltage $V(t) = 24 \sin(4000\pi t)$ [V] is applied across a R-L-C circuit shown below,
where R=5000 ?, L=40 mH, and C=20 nF.
1) Calculate,
a) the reactance of the inductor, $X_L$,
b) the reactance of the capacitor, $X_C$,
c) the impedance of the circuit, Z,
d) the amplitude of the current, $I_o$,
e) the amplitude of the voltage across the inductor, $V_L$,
f) the amplitude of the voltage across the capacitor, $V_C$,
g) the phase angle of the supply current with respect to the supply voltage, $\phi$.
