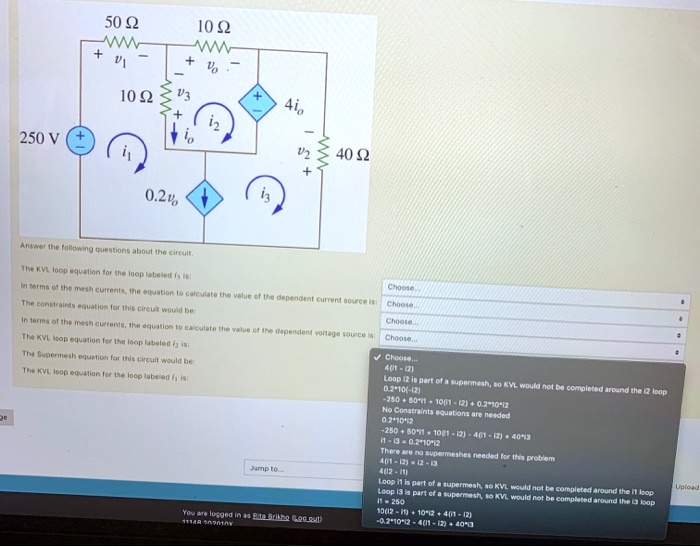

50 ?
10 ?
+ v1 -
+ v0 -
10 ?
v3
4i0
+
250 V (+ i1
io
i2
0.2v0
i3
+
40 ?
Answer the following questions about the circuit.
The KVL loop equation for the loop labeled i1 is:
In terms of the mesh currents, the equation to calculate the value of the dependent current source is:
The constraints equation for this circuit would be:
In terms of the mesh currents, the equation to calculate the value of the dependent voltage source is:
The KVL loop equation for the loop labeled i2 is:
The Supermesh equation for this circuit would be:
The KVL loop equation for the loop labeled i3 is:
Jump to...
You are logged in as Rita Brikho (Logout)
11148 5050???
Loop i2 is part of a supermesh, so KVL would not be completed around the i2 loop
0.2*10(-12)
-250+50*i1+10(i1-i2)+0.2*10*i2
No Constraints equations are needed
0.2*10*i2
-250+50*i1+10(i1-i2)-4(i1-i2)+40*i3
i1-i3=0.2*10*i2
There are no supermeshes needed for this problem
4(i1-i2)-i2-i3
4(i2-i1)
Loop i1 is part of a supermesh, so KVL would not be completed around the i1 loop
Loop i3 is part of a supermesh, so KVL would not be completed around the i3 loop
i1-250
10(i2-i1)+10*i2-4(i1-i2)
-0.2*10*i2-4(i1-i2)+40*i3
