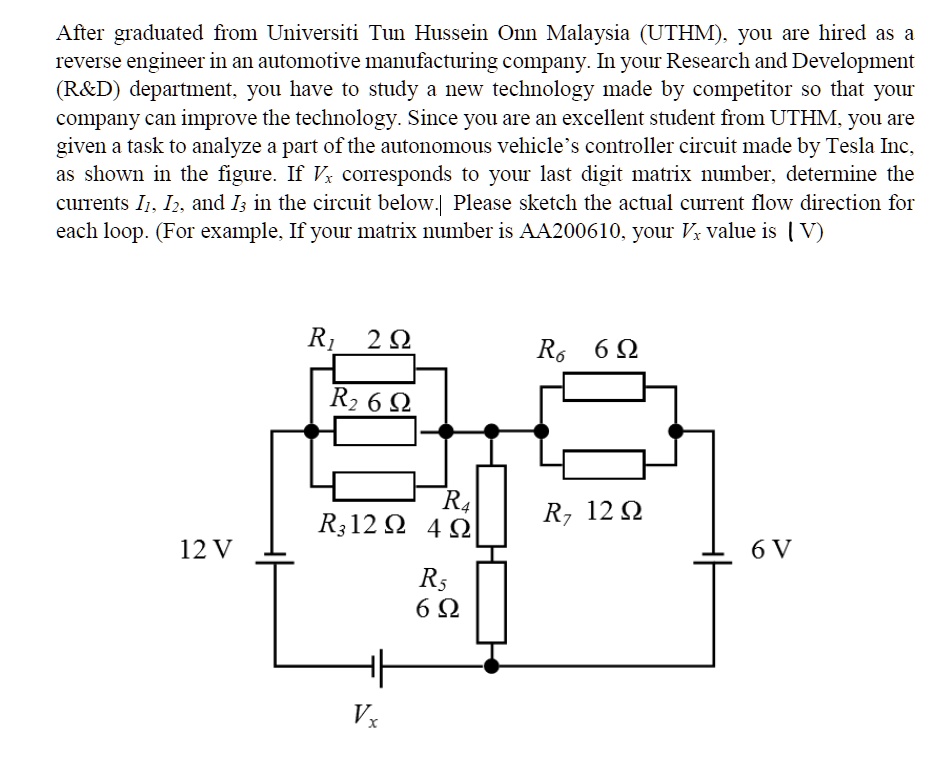

After graduated from Universiti Tun Hussein Onn Malaysia (UTHM), you are hired as a reverse engineer in an automotive manufacturing company. In your Research and Development (R&D) department, you have to study a new technology made by competitor so that your company can improve the technology. Since you are an excellent student from UTHM, you are given a task to analyze a part of the autonomous vehicle's controller circuit made by Tesla Inc, as shown in the figure. If $V_x$ corresponds to your last digit matrix number, determine the currents $I_1$, $I_2$, and $I_3$ in the circuit below. Please sketch the actual current flow direction for each loop. (For example, If your matrix number is AA200610, your $V_x$ value is (V)
12 V
$R_1$ 2 $\Omega$
$R_6$ 6 $\Omega$
$R_2$ 6 $\Omega$
$R_4$ 4 $\Omega$
$R_3$ 12 $\Omega$
$V_x$
$R_5$ 6 $\Omega$
$R_7$ 12 $\Omega$
6 V
