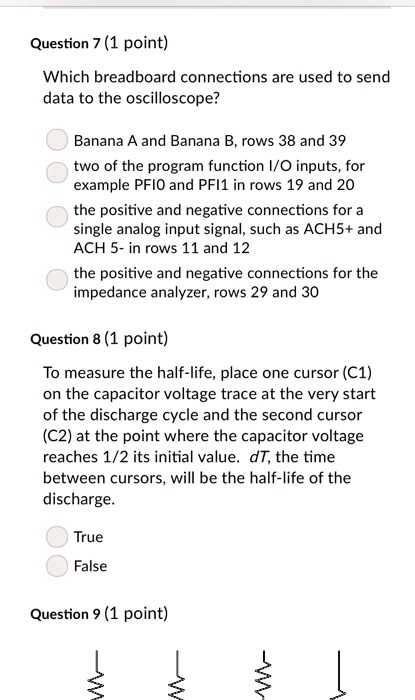

Question 7 (1 point)
Which breadboard connections are used to send
data to the oscilloscope?
Banana A and Banana B, rows 38 and 39
two of the program function I/O inputs, for
example PFIO and PFI1 in rows 19 and 20
the positive and negative connections for a
single analog input signal, such as ACH5+ and
ACH 5- in rows 11 and 12
the positive and negative connections for the
impedance analyzer, rows 29 and 30
Question 8 (1 point)
To measure the half-life, place one cursor (C1)
on the capacitor voltage trace at the very start
of the discharge cycle and the second cursor
(C2) at the point where the capacitor voltage
reaches 1/2 its initial value. dT, the time
between cursors, will be the half-life of the
discharge.
True
False
Question 9 (1 point)
