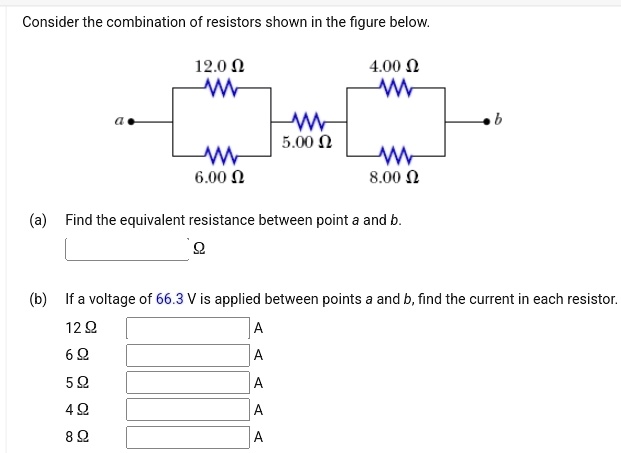

Consider the combination of resistors shown in the figure below.
$12.0 \ \Omega$
$4.00 \ \Omega$
a
$5.00 \ \Omega$
$6.00 \ \Omega$
$8.00 \ \Omega$
b
(a) Find the equivalent resistance between point a and b.
$\Omega$
(b) If a voltage of 66.3 V is applied between points a and b, find the current in each resistor.
$12 \ \Omega$ A
$6 \ \Omega$ A
$5 \ \Omega$ A
$4 \ \Omega$ A
$8 \ \Omega$ A
