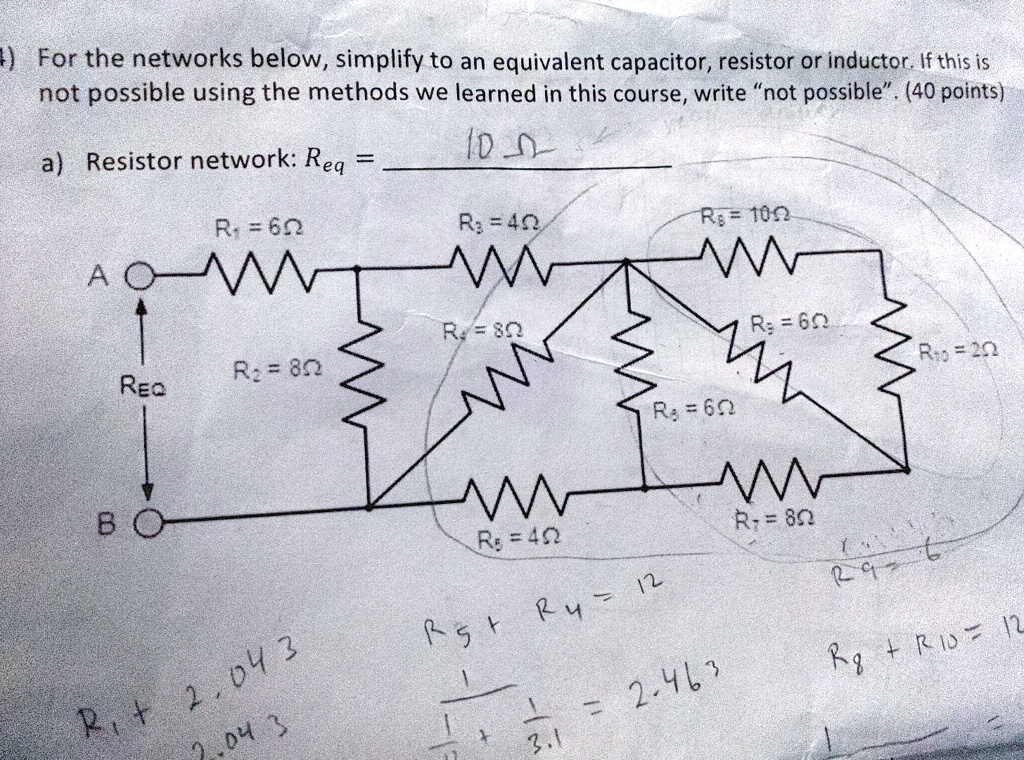

4) For the networks below, simplify to an equivalent capacitor, resistor or inductor. If this is
not possible using the methods we learned in this course, write "not possible". (40 points)
a) Resistor network: $R_{eq}$ =
$R_1 = 6\Omega$
A
$R_3 = 4\Omega$
$R_9 = 10\Omega$
B
$R_4 = 8\Omega$
$R_{EQ}$
$R_2 = 8\Omega$
$R_6 = 4\Omega$
$R_5 = 6\Omega$
$R_8 = 6\Omega$
$R_{10} = 2\Omega$
$R_7 = 8\Omega$
