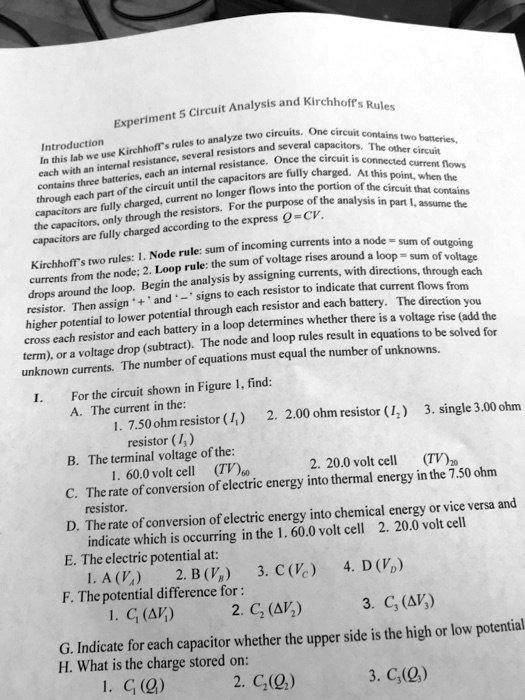

Text: Introduction
Capacitors are fully charged according to the expression Q = CV.
I.
For the circuit shown in Figure 1, find:
A. The current in the 2.00 ohm resistor.
B. The current in the single 3.00 ohm resistor.
C. The current in the 1.7 ohm resistor.
D. The terminal voltage of the 2.0 volt cell.
E. The terminal voltage of the 1.6 volt cell.
F. The rate of conversion of electric energy into thermal energy in the 7.50 ohm resistor.
G. The rate of conversion of electric energy into chemical energy or vice versa in the 1.6 volt cell and 2.0 volt cell.
H. The electric potential at BV, CVc, DV, and AV.
I. The potential difference for CV.
J. Indicate for each capacitor whether the upper side is the high or low potential.
K. What is the charge stored on capacitor C.
