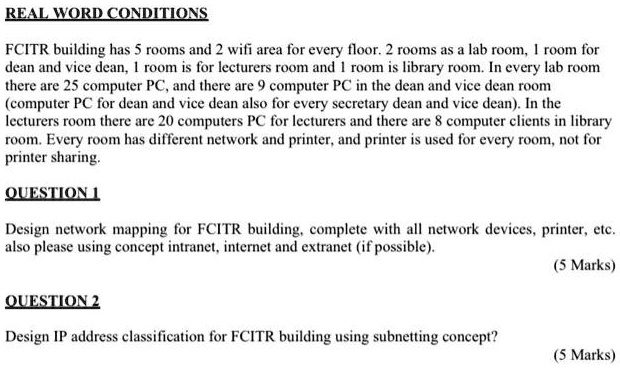

REAL WORD CONDITIONS
FCITR building has 5 rooms and 2 wifi area for every floor. 2 rooms as a lab room, 1 room for
dean and vice dean, 1 room is for lecturers room and 1 room is library room. In every lab room
there are 25 computer PC, and there are 9 computer PC in the dean and vice dean room
(computer PC for dean and vice dean also for every secretary dean and vice dean). In the
lecturers room there are 20 computers PC for lecturers and there are 8 computer clients in library
room. Every room has different network and printer, and printer is used for every room, not for
printer sharing.
QUESTION 1
Design network mapping for FCITR building, complete with all network devices, printer, etc.
also please using concept intranet, internet and extranet (if possible).
(5 Marks)
QUESTION 2
Design IP address classification for FCITR building using subnetting concept?
(5 Marks)
