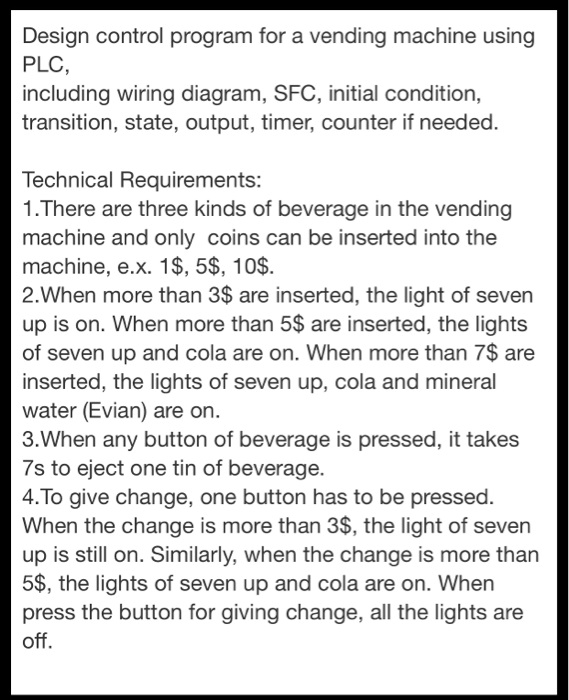

Design control program for a vending machine using
PLC,
including wiring diagram, SFC, initial condition,
transition, state, output, timer, counter if needed.
Technical Requirements:
1. There are three kinds of beverage in the vending
machine and only coins can be inserted into the
machine, e.x. 1$, 5$, 10$.
2. When more than 3$ are inserted, the light of seven
up is on. When more than 5$ are inserted, the lights
of seven up and cola are on. When more than 7$ are
inserted, the lights of seven up, cola and mineral
water (Evian) are on.
3.When any button of beverage is pressed, it takes
7s to eject one tin of beverage.
4. To give change, one button has to be pressed.
When the change is more than 3$, the light of seven
up is still on. Similarly, when the change is more than
5$, the lights of seven up and cola are on. When
press the button for giving change, all the lights are
off.
