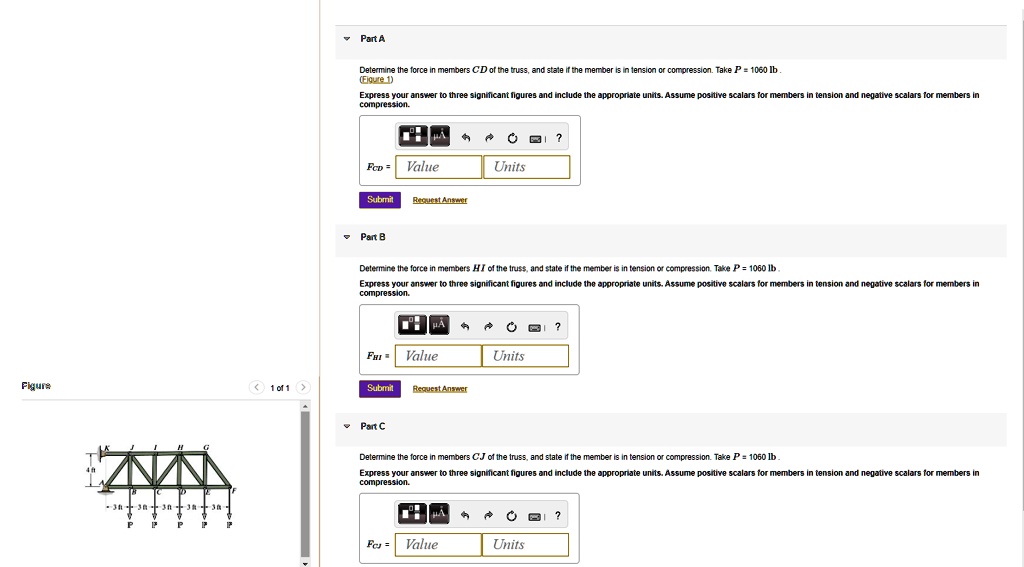

Part A
Determine the force in members CD of the truss, and state if the member is in tension or compression. Take P = 1060 lb
(Figure 1)
Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in
compression.
Fcp =
Value
Submit
Request Answer
Part B
Units
?
Determine the force in members HI of the truss, and state if the member is in tension or compression. Take P = 1060 lb
Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in
compression.
FHI =
Value
Units
Figure
<1 of 1 >
Submit
Request Answer
Part C
?
Determine the force in members CJ of the truss, and state if the member is in tension or compression. Take P = 1060 lb
Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in
compression.
Fcj = Value
Units
?
