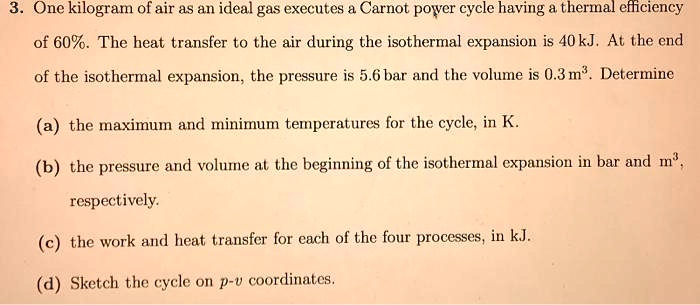

3. One kilogram of air as an ideal gas executes a Carnot power cycle having a thermal efficiency
of 60%. The heat transfer to the air during the isothermal expansion is 40 kJ. At the end
of the isothermal expansion, the pressure is 5.6 bar and the volume is 0.3 $m^3$. Determine
(a) the maximum and minimum temperatures for the cycle, in K.
(b) the pressure and volume at the beginning of the isothermal expansion in bar and $m^3$,
respectively.
(c) the work and heat transfer for each of the four processes, in kJ.
(d) Sketch the cycle on $p-v$ coordinates.
