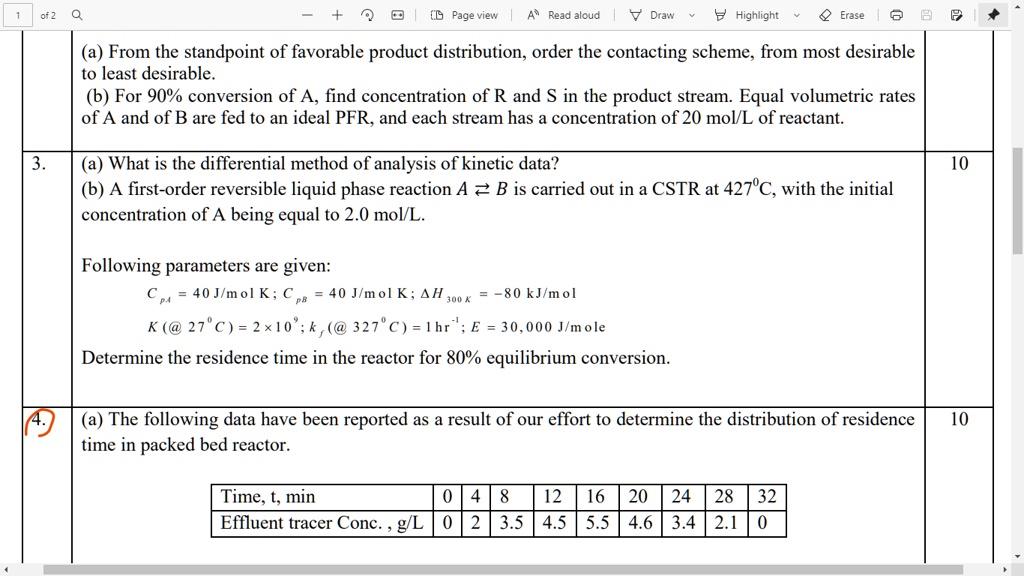

(a) From the standpoint of favorable product distribution, order the contacting scheme, from most desirable to least desirable.
(b) For 90% conversion of A, find the concentration of R and S in the product stream. Equal volumetric rates of A and B are fed to an ideal PFR, and each stream has a concentration of 20 mol/L of reactant.
3.
(a) What is the differential method of analysis of kinetic data?
(b) A first-order reversible liquid phase reaction A -> B is carried out in a CSTR at 427°C, with the initial concentration of A being equal to 2.0 mol/L.
10
The following parameters are given: C=40 J/molK; Cs=40 J/molK; Hoo=-80 kJ/mol
K(@27°C)=210; K(@327°C)=1 hr; E=30,000 J/mole
Determine the residence time in the reactor for 80% equilibrium conversion.
(a) The following data have been reported as a result of our effort to determine the distribution of residence time in a packed bed reactor.
10
Time, t, min: 0 4 8 12 16 20 24 28 32
Effluent tracer Conc., g/L: 0 2 3.5 4.5 5.5 4.6 3.4 2.1 0
