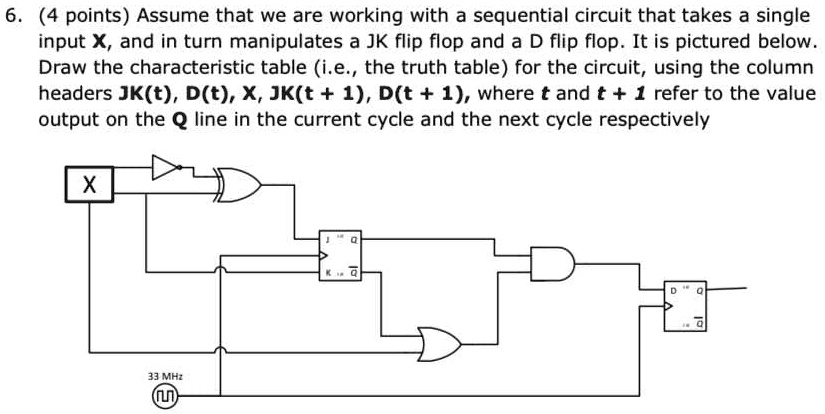

6. (4 points) Assume that we are working with a sequential circuit that takes a single
input X, and in turn manipulates a JK flip flop and a D flip flop. It is pictured below.
Draw the characteristic table (i.e., the truth table) for the circuit, using the column
headers JK(t), D(t), X, JK(t + 1), D(t + 1), where t and t + 1 refer to the value
output on the Q line in the current cycle and the next cycle respectively
