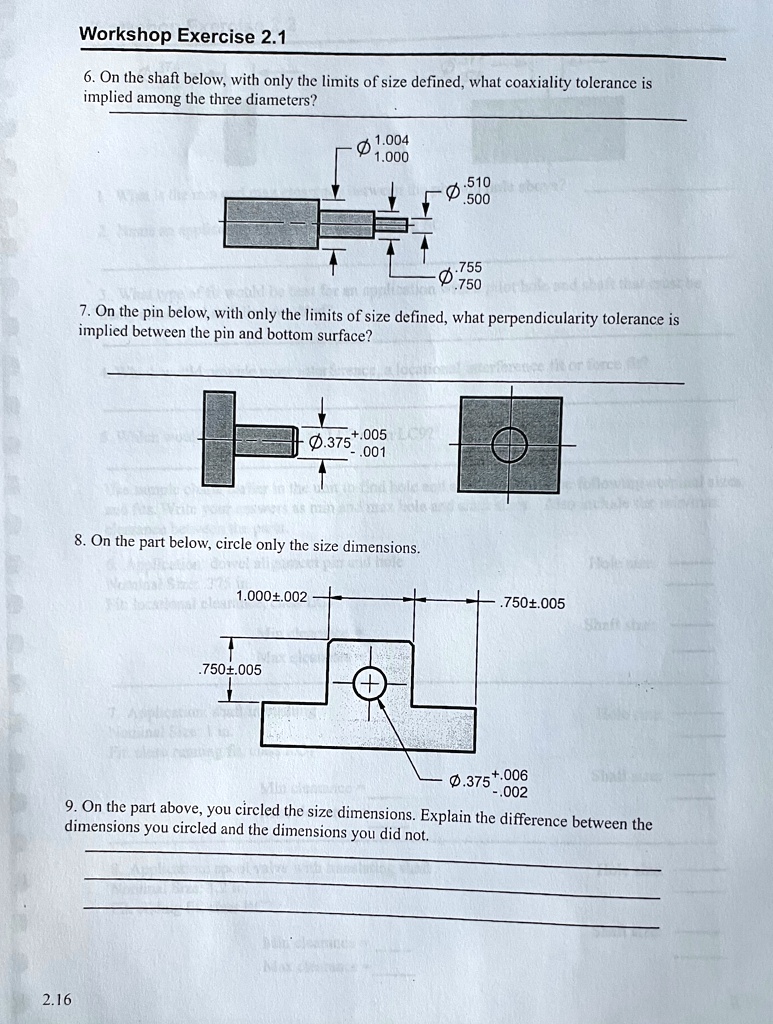

Workshop Exercise 2.1
6. On the shaft below, with only the limits of size defined, what coaxiality tolerance is
implied among the three diameters?
$\phi$ 1.004
1.000
$\phi$ .510
.500
$\phi$ .755
.750
7. On the pin below, with only the limits of size defined, what perpendicularity tolerance is
implied between the pin and bottom surface?
$\phi$ .375$^{+0.005}_{-0.001}$
8. On the part below, circle only the size dimensions.
1.000$\pm$.002
.750$\pm$.005
+
.750$\pm$.005
$\phi$ .375$^{+0.006}_{-0.002}$
9. On the part above, you circled the size dimensions. Explain the difference between the
dimensions you circled and the dimensions you did not.
2.16
