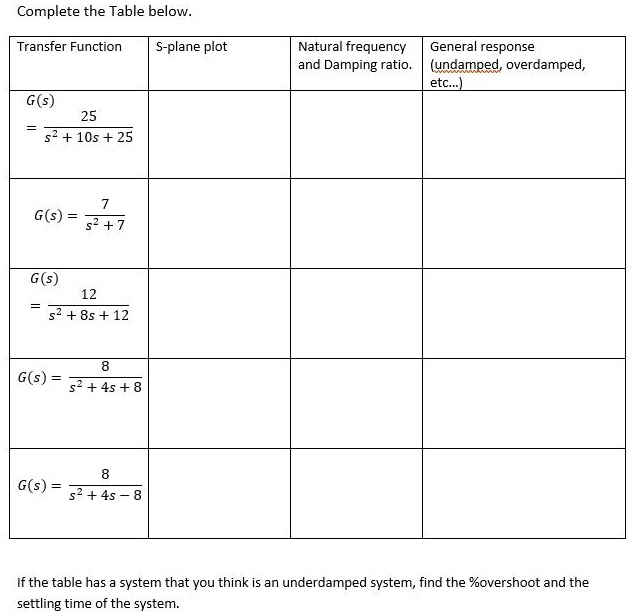

Complete the Table below.
Transfer Function
S-plane plot
Natural frequency
and Damping ratio.
General response
(undamped, overdamped,
etc...)
G(s)
25
=\\
s^2 + 10s + 25
G(s) = \frac{7}{s^2 + 7}
G(s)
12
=
\\
s^2 + 8s + 12
G(s) = \frac{8}{s^2 + 4s + 8}
G(s) = \frac{8}{s^2 + 4s - 8}
If the table has a system that you think is an underdamped system, find the \%overshoot and the
settling time of the system.
