10
Question
(5 Points)

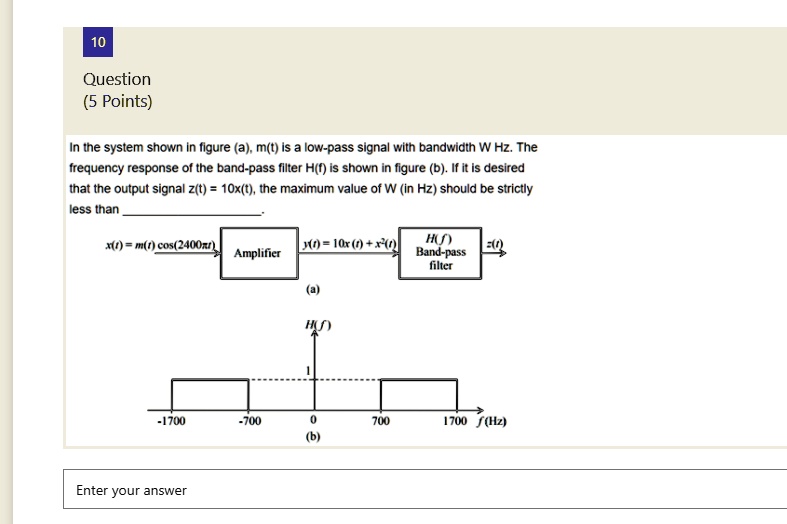

In the system shown in figure (a), m(t) is a low-pass signal with bandwidth W Hz. The
frequency response of the band-pass filter H(f) is shown in figure (b). If it is desired
that the output signal z(t) = 10x(t), the maximum value of W (in Hz) should be strictly
less than
x(t) = m(t) \cos(2400\pi t),
y(t) = 10x(t) + x^2(t)
Amplifier
H(f)
Band-pass
filter
(a)
H(f)
1
-1700
-700
0
(b)
700
1700 \text{ (Hz)}
Enter your answer
