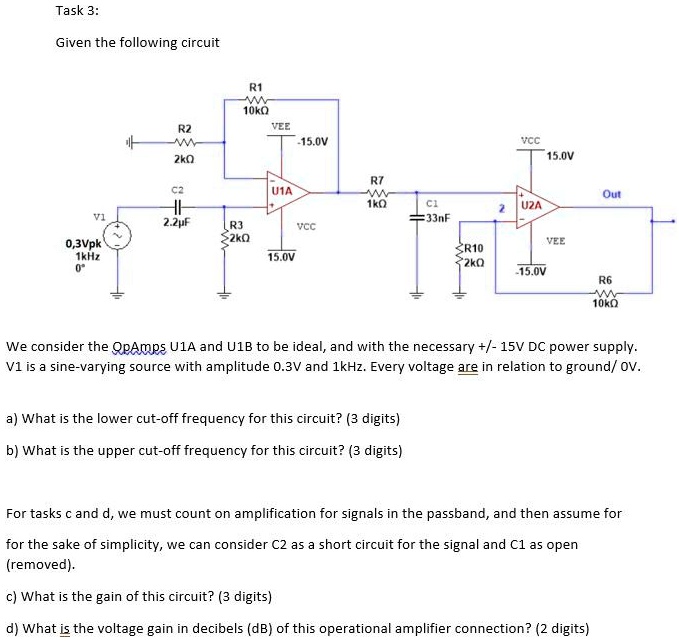

Task 3:
Given the following circuit
R2
2k?
R1
10??
VEE
-15.0V
C2
U1A
V1
2.2µF
R3
?2??
0,3Vpk
1kHz
0°
15.0V
VCC
15.0V
R7
W
1??
Out
C1
2
U2A
33nF
VCC
VEE
R10
2kQ
-15.0V
R6
W
10??
We consider the OpAmps U1A and U1B to be ideal, and with the necessary +/- 15V DC power supply.
V1 is a sine-varying source with amplitude 0.3V and 1kHz. Every voltage are in relation to ground/OV.
a) What is the lower cut-off frequency for this circuit? (3 digits)
b) What is the upper cut-off frequency for this circuit? (3 digits)
For tasks c and d, we must count on amplification for signals in the passband, and then assume for
for the sake of simplicity, we can consider C2 as a short circuit for the signal and C1 as open
(removed).
c) What is the gain of this circuit? (3 digits)
d) What is the voltage gain in decibels (dB) of this operational amplifier connection? (2 digits)
