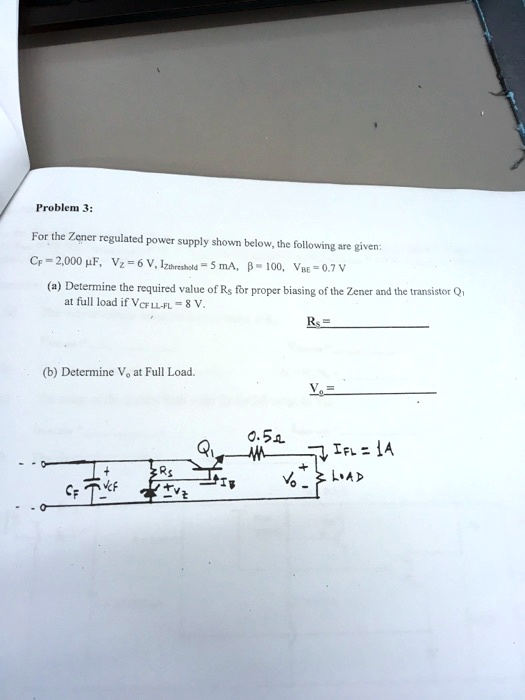

Problem 3:
For the Zener regulated power supply shown below, the following are given: Cp=2,000μF, Vz=6V, Izaresht=5mA, β=100, VBE=0.7V.
a) Determine the required value of Rs for proper biasing of the Zener and the transistor Q at full load if VcFL-FL=8V. Rs=
b) Determine Vo at Full Load.
