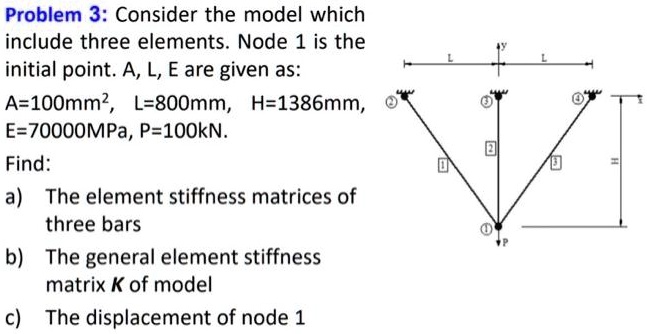

Problem 3: Consider the model which
include three elements. Node 1 is the
inital point. A, L, E are given as:
A=100mm², L=800mm, H=1386mm,
E=70000MPa, P=100kN.
Find:
a) The element stiffness matrices of
three bars
b) The general element stiffness
matrix K of model
c) The displacement of node 1
