Consider the underdamped Spring–mass system with the following parameters: The system mass (2 kg),The damper coefficient (2.5 kg/s), The spring constant (k=50 N/m),The periodic excitation forcing F(t)=10 sin3t in (N) Initial displacement (0.01 m),Initial velocity (0 m/s). Determine: The total displacement after 8 seconds in (mm).

View Answer

BEST MATCH

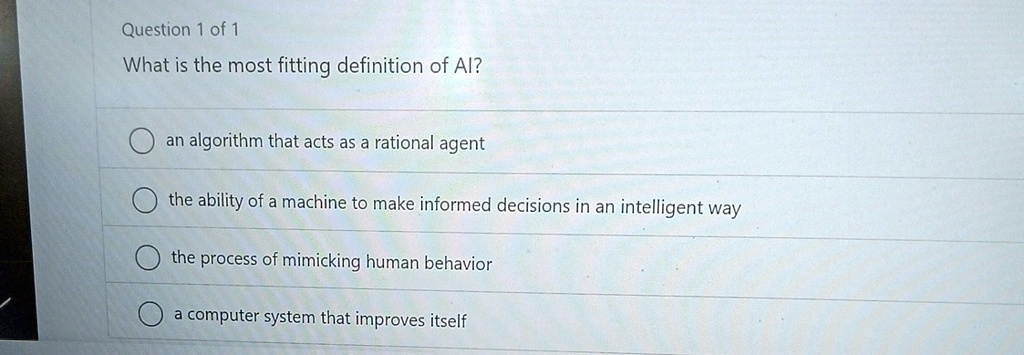

Question 1 of 1 What is the most fitting definition of AI? an algorithm that acts as a rational agent the ability of a machine to make informed decisions in an intelligent way the process of mimicking human behavior a computer system that improves itself

View Answer

BEST MATCH

Would you have asked the nurses who witnessed this harassment to talk with you or to the VP for Nursing so that the behavior could be documented?

View Answer

BEST MATCH

29) $f(x) = \frac{x-2}{x^2+5x}$ A) $f^{-1}(x) = \frac{x-2}{x^2+5x}$ C) Not a one-to-one function B) $f^{-1}(x) = \frac{2x+5}{x}$ D) $f^{-1}(x) = -2+5x$

View Answer

BEST MATCH

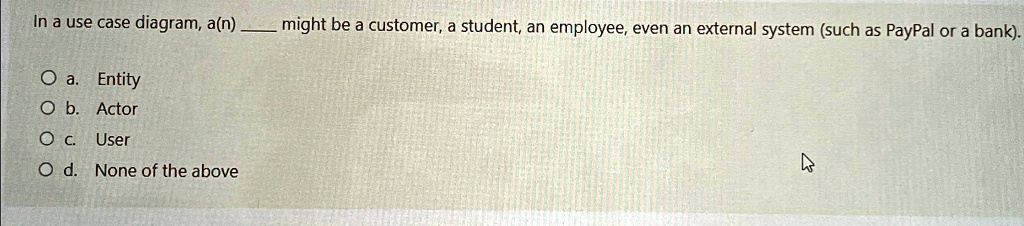

In a use case diagram, a(n) ______ might be a customer, a student, an employee, even an external system (such as PayPal or a bank). O a. Entity O b. Actor O c. User O d. None of the above

View Answer

BEST MATCH

Consider the mass-spring-damper system shown in Figure [3A.1] where k = 10 [lbf/in], m = 1 [lbf.s^2/in], and b = 2 [lbf s/in]. 2. Draw a linear graph and normal tree representing this system. 3. Create a block diagram in Simulink that will simulate the response of this system to the input vs(t) = 5 sin(t) [in/s]. The block diagram should flow horizontally from inputs on the left to outputs on the right. 4. The outputs of interest for this system are the position, velocity, and acceleration of the mass, as well as the force in the spring. Output each of these values to the MATLAB workspace and generate a plot of each output with respect to time. Run the simulation for 15 [s]. T m k eee m b

View Answer

BEST MATCH

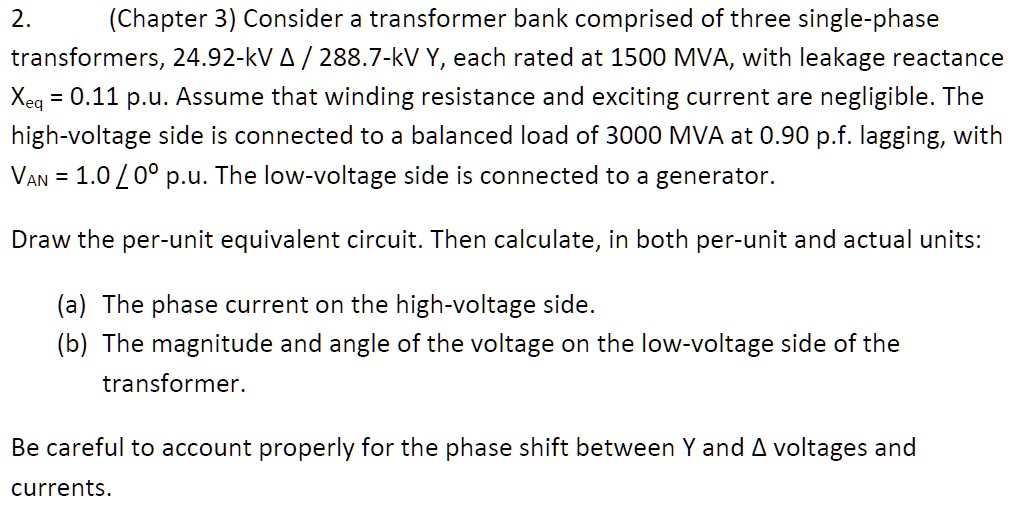

2. (Chapter 3) Consider a transformer bank comprised of three single-phase transformers, 24.92-kV $\Delta$ / 288.7-kV Y, each rated at 1500 MVA, with leakage reactance $X_{eq} = 0.11$ p.u. Assume that winding resistance and exciting current are negligible. The high-voltage side is connected to a balanced load of 3000 MVA at 0.90 p.f. lagging, with $V_{AN} = 1.0\angle 0^\circ$ p.u. The low-voltage side is connected to a generator. Draw the per-unit equivalent circuit. Then calculate, in both per-unit and actual units: (a) The phase current on the high-voltage side. (b) The magnitude and angle of the voltage on the low-voltage side of the transformer. Be careful to account properly for the phase shift between Y and $\Delta$ voltages and currents.

View Answer

BEST MATCH

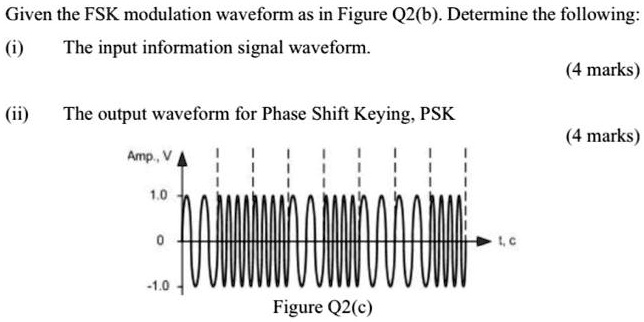

Given the FSK modulation waveform as in Figure Q2(b). Determine the following: (i) The input information signal waveform. (4 marks) (ii) The output waveform for Phase Shift Keying, PSK (4 marks) Amp., V 1.0 -1.0 Figure Q2(c) t, c

View Answer

BEST MATCH

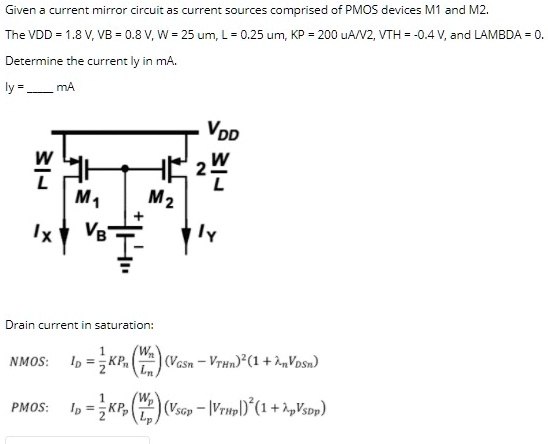

Given a current mirror circuit as current sources comprised of PMOS devices M1 and M2. The VDD = 1.8 V, VB = 0.8 V, W = 25 um, L = 0.25 um, KP = 200 uA/V2, VTH = -0.4 V, and LAMBDA = 0. Determine the current $I_y$ in mA. $I_y$ = ____ mA $V_{DD}$ $\frac{W}{L}$ $\frac{2W}{L}$ $M_1$ $M_2$ $+$ $I_x$ $V_B$ $I_y$ Drain current in saturation: NMOS: $I_D = \frac{1}{2}KP_n(\frac{W_n}{L_n})(V_{GSn} - V_{THn})^2(1 + \lambda_nV_{DSn})$ PMOS: $I_D = \frac{1}{2}KP_p(\frac{W_p}{L_p})(V_{SGP} - |V_{THp}|)^2(1 + \lambda_pV_{SDp})$

View Answer

BEST MATCH

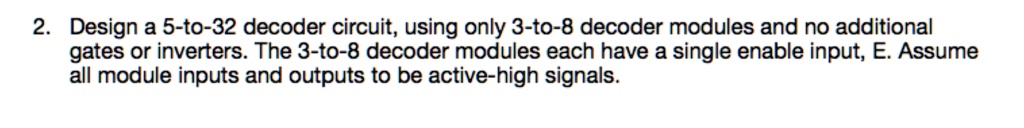

2. Design a 5-to-32 decoder circuit, using only 3-to-8 decoder modules and no additional gates or inverters. The 3-to-8 decoder modules each have a single enable input, E. Assume all module inputs and outputs to be active-high signals.

View Answer
