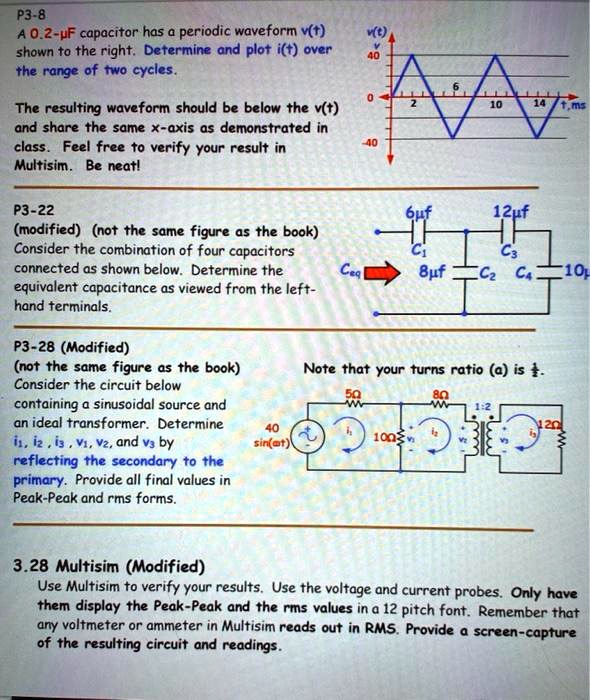

P3-8
A 0.2-µF capacitor has a periodic waveform v(t)
shown to the right. Determine and plot i(t) over
the range of two cycles.
v(t)
40
6
0
The resulting waveform should be below the v(t)
and share the same x-axis as demonstrated in
class. Feel free to verify your result in
Multisim. Be neat!
2
10
14
1,ms
-40
P3-22
6µf
12µf
(modified) (not the same figure as the book)
Consider the combination of four capacitors
connected as shown below. Determine the
Ceq
8µf
C2
C4
10µ
equivalent capacitance as viewed from the left-
hand terminals.
P3-28 (Modified)
(not the same figure as the book)
Consider the circuit below
Note that your turns ratio (a) is $ rac{1}{2}$.
containing a sinusoidal source and
an ideal transformer. Determine
$i_1$, $i_2$, $i_3$, $V_1$, $V_2$, and $V_3$ by
reflecting the secondary to the
primary. Provide all final values in
Peak-Peak and rms forms.
50
W
8?
1:2
40
20?
100?
sin(?t)
3.28 Multisim (Modified)
Use Multisim to verify your results. Use the voltage and current probes. Only have
them display the Peak-Peak and the rms values in a 12 pitch font. Remember that
any voltmeter or ammeter in Multisim reads out in RMS. Provide a screen-capture
of the resulting circuit and readings.
