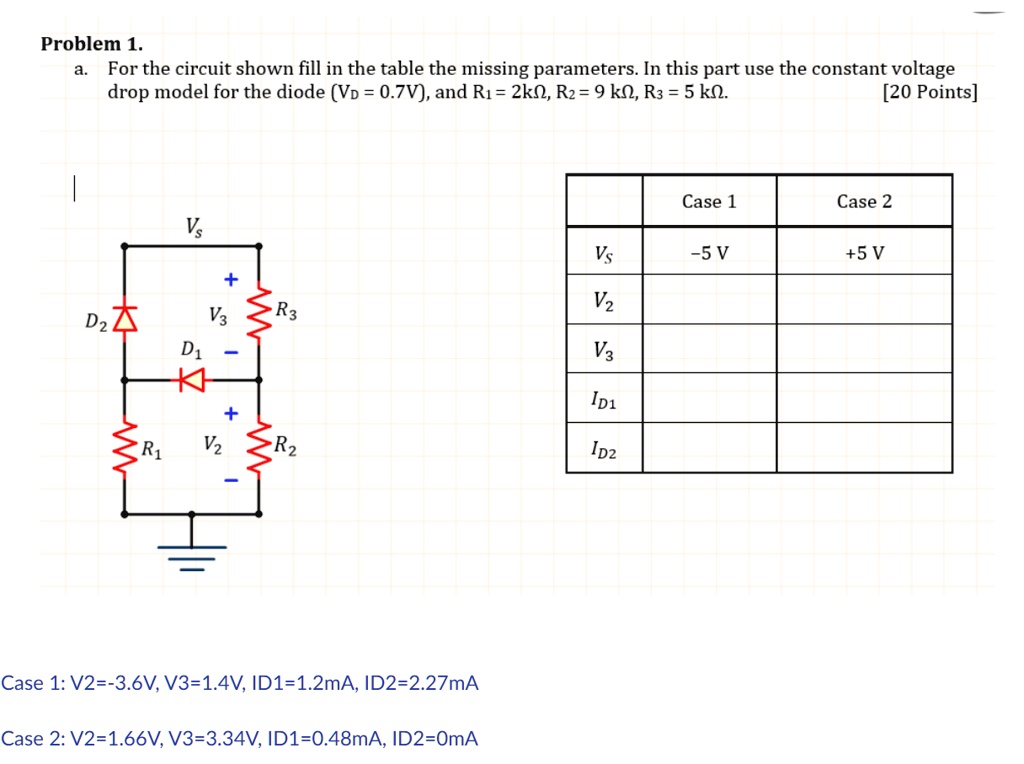

Problem 1.
a. For the circuit shown fill in the table the missing parameters. In this part use the constant voltage
drop model for the diode ($V_D$ = 0.7V), and $R_1$ = 2k$\Omega$, $R_2$ = 9 k$\Omega$, $R_3$ = 5 k$\Omega$. [20 Points]
| | Case 1 | Case 2 |
|-------|--------|--------|
| $V_S$ | -5 V | +5 V |
| $V_2$ | | |
| $V_3$ | | |
| $I_{D1}$| | |
| $I_{D2}$| | |
Case 1: V2=-3.6V, V3=1.4V, ID1=1.2mA, ID2=2.27mA
Case 2: V2=1.66V, V3=3.34V, ID1=0.48mA, ID2=0mA
