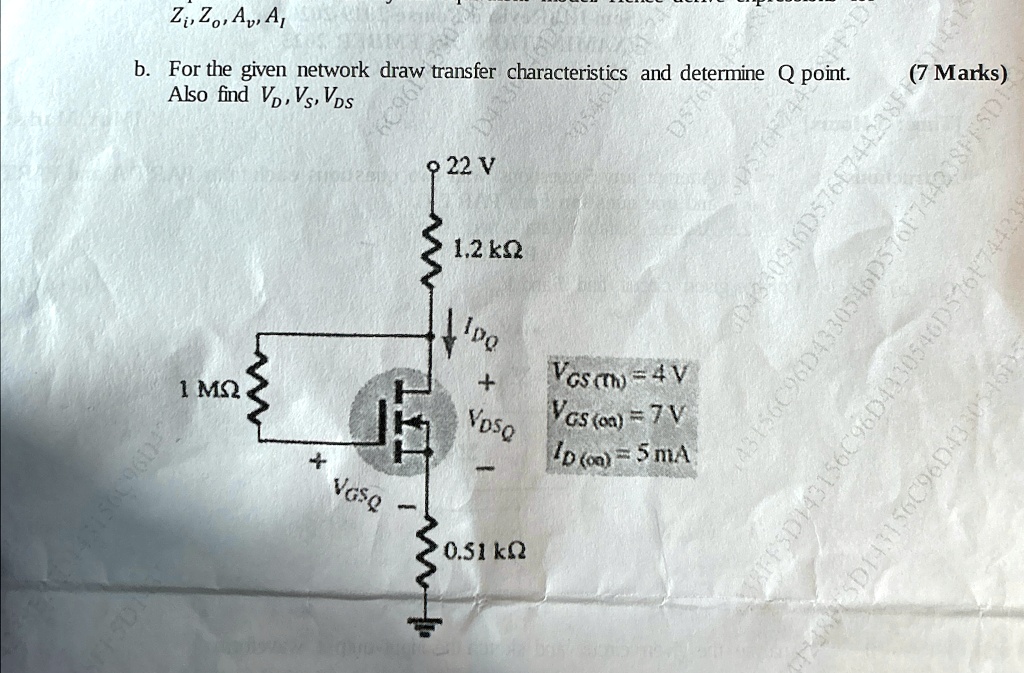

b. For the given network draw transfer characteristics and determine Q point. (7 Marks)
Also find $V_D$, $V_S$, $V_{DS}$
$Z_i, Z_o, A_v, A_i$
22 V
1.2 k?
$I_{DQ}$
1 M?
+ $V_{GSQ}$ -
$V_{DSQ}$
0.51 k?
$V_{GS(m)} = 4 V$
$V_{GS(on)} = 7 V$
$I_D(on) = 5 mA
