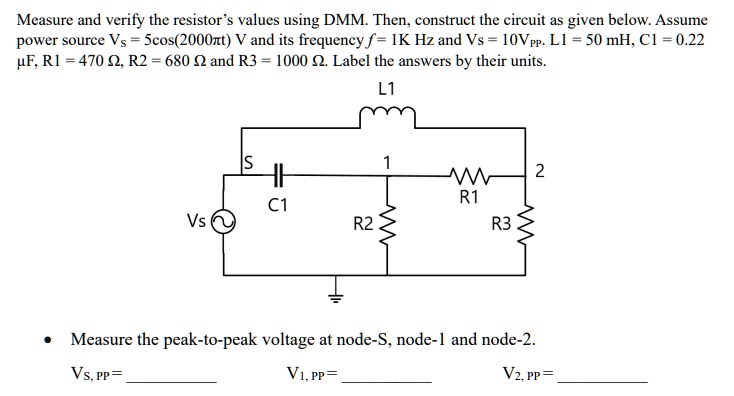

Measure and verify the resistor's values using DMM. Then, construct the circuit as given below. Assume power source $V_s = 5cos(2000\pi t)$ V and its frequency $f = 1K$ Hz and $V_s = 10V_{pp}$. L1 = 50 mH, C1 = 0.22 ?F, R1 = 470 ?, R2 = 680 ? and R3 = 1000 ?. Label the answers by their units.
• Measure the peak-to-peak voltage at node-S, node-1 and node-2.
$V_{S, PP}=$
$V_{1, PP}=$
$V_{2, PP} = $
