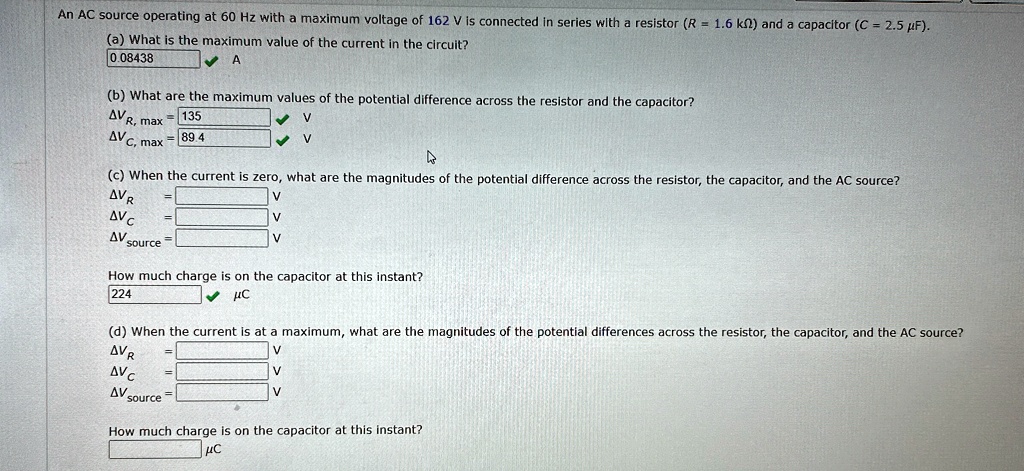

An AC source operating at 60 Hz with a maximum voltage of 162 V is connected in series with a resistor ($R = 1.6 k\Omega$) and a capacitor ($C = 2.5 \mu F$).
(a) What is the maximum value of the current in the circuit?
0.08438 A
(b) What are the maximum values of the potential difference across the resistor and the capacitor?
$\Delta V_{R, max} = 135 V$
$\Delta V_{C, max} = 89.4 V$
(c) When the current is zero, what are the magnitudes of the potential difference across the resistor, the capacitor, and the AC source?
$\Delta V_R = $
$\Delta V_C = $
$\Delta V_{source} = $
How much charge is on the capacitor at this instant?
224 $\mu C$
(d) When the current is at a maximum, what are the magnitudes of the potential differences across the resistor, the capacitor, and the AC source?
$\Delta V_R = $
$\Delta V_C = $
$\Delta V_{source} = $
How much charge is on the capacitor at this instant?
$\mu C$
