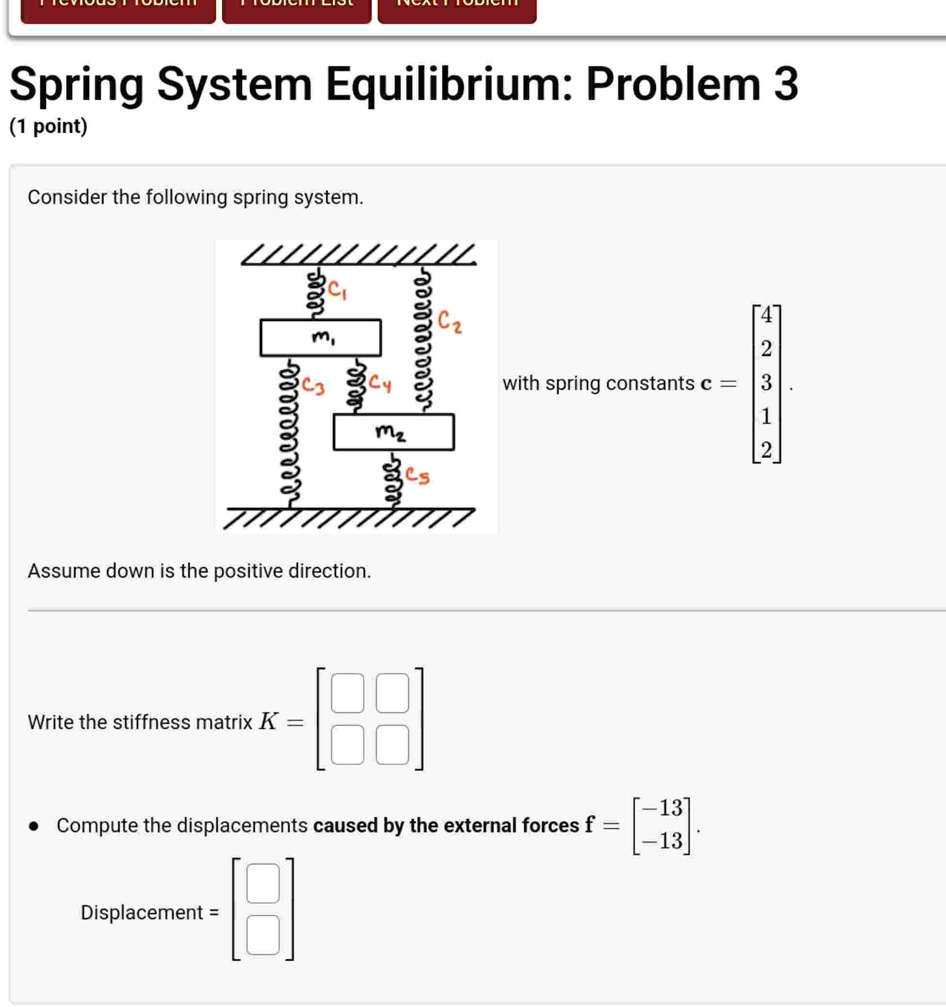

Spring System Equilibrium: Problem 3
(1 point)
Consider the following spring system.
Assume down is the positive direction.
with spring constants $c = \begin{bmatrix} 4 \\ 2 \\ 3 \\ 1 \\ 2 \end{bmatrix}$.
Write the stiffness matrix $K = \begin{bmatrix} \Box & \Box \\ \Box & \Box \end{bmatrix}$
Compute the displacements caused by the external forces $f = \begin{bmatrix} -13 \\ -13 \end{bmatrix}$.
Displacement $= \begin{bmatrix} \Box \\ \Box \end{bmatrix}$
