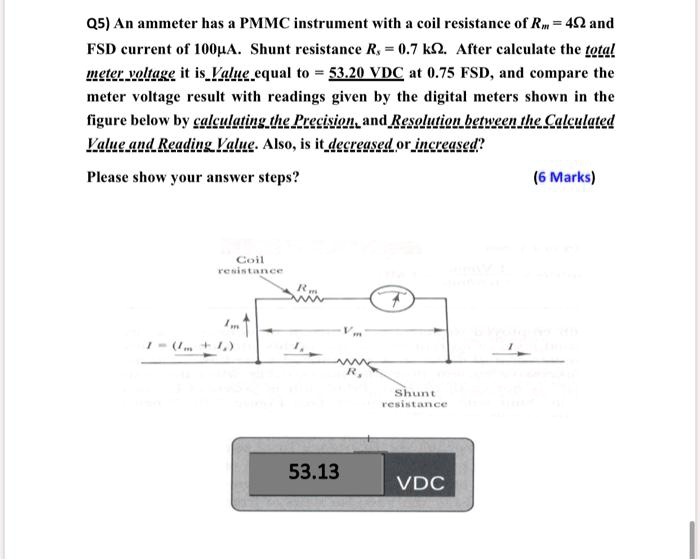

Q5) An ammeter has a PMMC instrument with a coil resistance of R = 40脦漏 and FSD current of 100A. Shunt resistance R = 0.7k脦漏. After calculating the total meter voltage, it is equal to 53.20 VDC at 0.75 FSD, and compare the meter voltage result with readings given by the digital meters shown in the figure below by calculating the Precision and Resolution between the Calculated Value and Reading Value. Also, is it decreased or increased? Please show your answer steps. (6 Marks)
Coil resistance
Shunt
53.13 VDC
