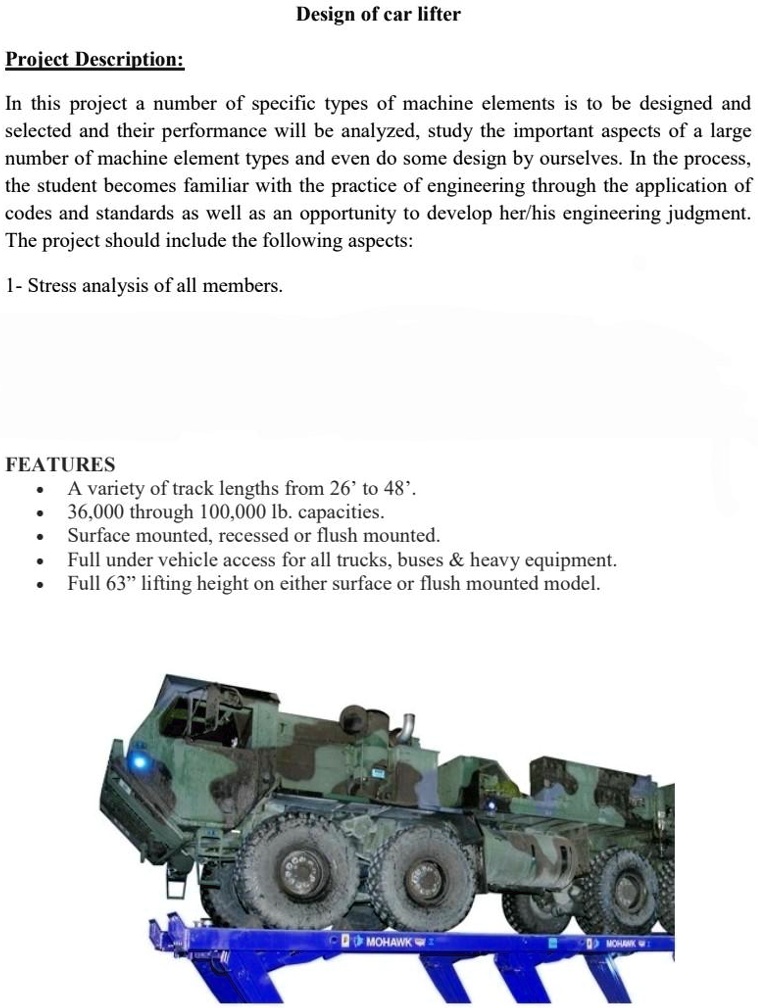

Design of car lifter
Project Description:
In this project a number of specific types of machine elements is to be designed and
selected and their performance will be analyzed, study the important aspects of a large
number of machine element types and even do some design by ourselves. In the process,
the student becomes familiar with the practice of engineering through the application of
codes and standards as well as an opportunity to develop her/his engineering judgment.
The project should include the following aspects:
1- Stress analysis of all members.
FEATURES
• A variety of track lengths from 26' to 48'.
• 36,000 through 100,000 lb. capacities.
• Surface mounted, recessed or flush mounted.
• Full under vehicle access for all trucks, buses & heavy equipment.
• Full 63" lifting height on either surface or flush mounted model.
