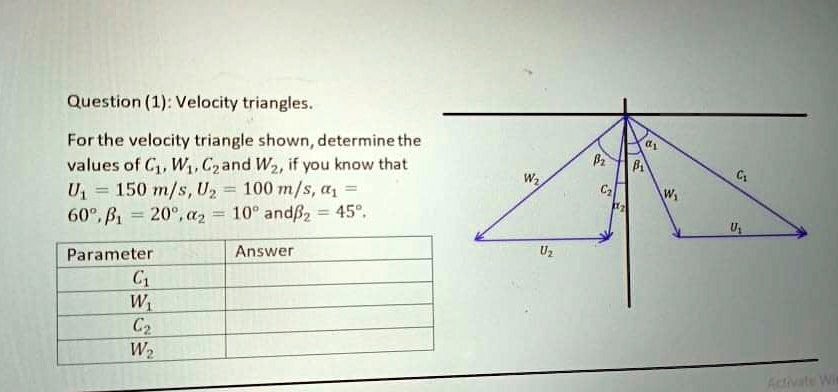

Question (1): Velocity triangles.
For the velocity triangle shown, determine the
values of $C_1$, $W_1$, $C_2$ and $W_2$, if you know that
$U_1 = 150 \ m/s$, $U_2 = 100 \ m/s$, $\alpha_1 = 60^\circ$, $\beta_1 = 20^\circ$, $\alpha_2 = 10^\circ$ and $\beta_2 = 45^\circ$.
Parameter
Answer
$C_1$
$W_1$
$C_2$
$W_2$
