$An air-standard cycle with variable specific heats is executed in a closed system and is composed of the following four processes: $1-2 \quad$ Isentropic compression from 100 kPa and $22^{\circ} \mathrm{C}$ to $600 \mathrm{kPa}$ 2-3 $\quad v=$ constant heat addition to $1500 \mathrm{K}$ $3-4 \quad$ Isentropic expansion to $100 \mathrm{kPa}$ 4-1 $P=$ constant heat rejection to initial state (a) Show the cycle on $P$ -v and $T$ -s diagrams. (b) Calculate the net work output per unit mass. (c) Determine the thermal efficiency.$

An air-standard cycle with variable specific heats is executed in a closed system and is composed of the following four processes: $1-2 \quad$ Isentropic compression from 100 kPa and $22^{\circ} \mathrm{C}$ to $600 \mathrm{kPa}$ 2-3 $\quad v=$ constant heat addition to $1500 \mathrm{K}$ $3-4 \quad$ Isentropic expansion to $100 \mathrm{kPa}$ 4-1 $P=$ constant heat rejection to initial state (a) Show the cycle on $P$ -v and $T$ -s diagrams. (b) Calculate the net work output per unit mass. (c) Determine the thermal efficiency.

$A load of lumber of weight $W=25 \mathrm{kN}$ is being raised by a mobile crane. Knowing that the tension is $25 \mathrm{kN}$ in all portions of cable $A E F$ and that the weight of boom $A B C$ is $3 \mathrm{kN}$, determine $(a)$ the tension in rod $C D,(b)$ the reaction at pin $B .$$

A load of lumber of weight $W=25 \mathrm{kN}$ is being raised by a mobile crane. Knowing that the tension is $25 \mathrm{kN}$ in all portions of cable $A E F$ and that the weight of boom $A B C$ is $3 \mathrm{kN}$, determine $(a)$ the tension in rod $C D,(b)$ the reaction at pin $B .$

Equilibrium of Rigid Bodies

Equilibrium in Two Dimensions

$A load of lumber of weight $W=25 \mathrm{kN}$ is being raised by a mobile crane. The weight of boom $A B C$ and the combined weight of the truck and driver are as shown. Determine the reaction at each of the two $(a)$ front wheels $H,(b)$ rear wheels $K$.$

A load of lumber of weight $W=25 \mathrm{kN}$ is being raised by a mobile crane. The weight of boom $A B C$ and the combined weight of the truck and driver are as shown. Determine the reaction at each of the two $(a)$ front wheels $H,(b)$ rear wheels $K$.

Equilibrium of Rigid Bodies

Equilibrium in Two Dimensions

For the beam and loading shown, determine (a) the reaction at A, (b) the tension in cable BC.

Equilibrium of Rigid Bodies

Equilibrium in Two Dimensions

Questions asked

INSTANT ANSWER

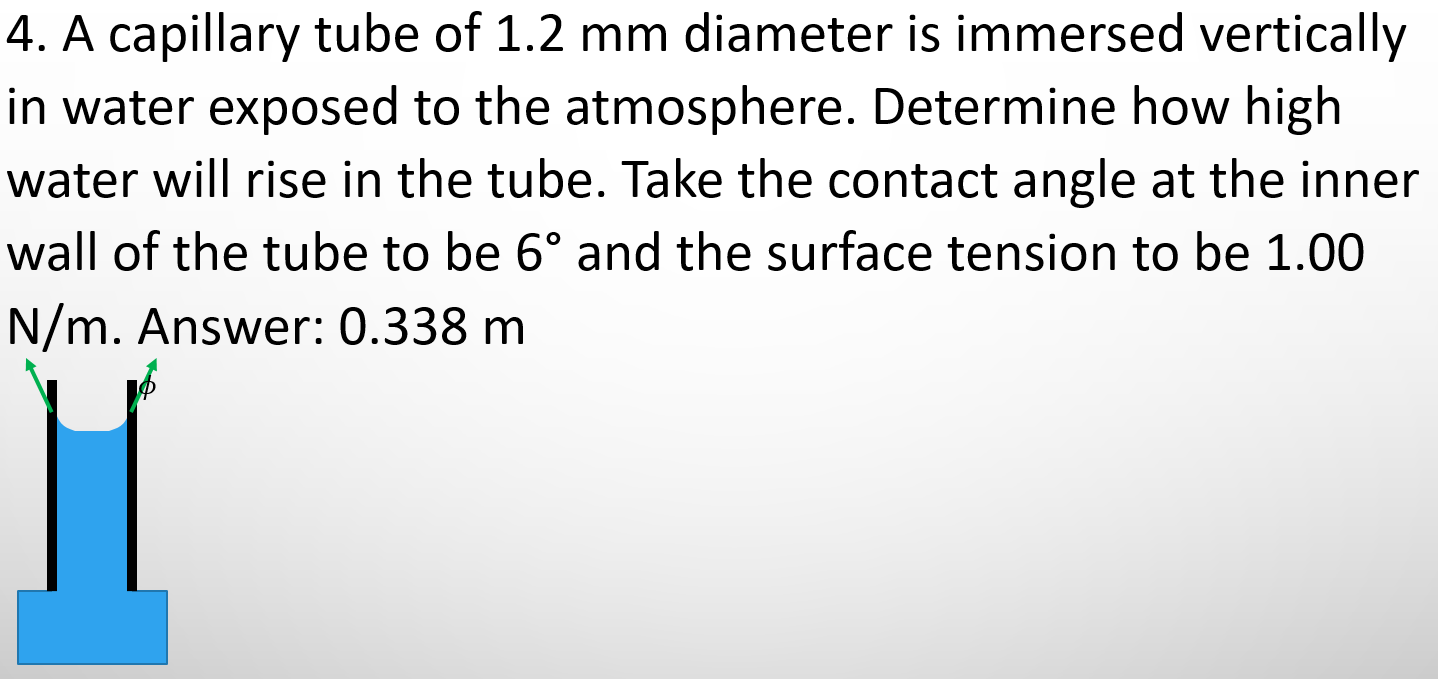

4. A capillary tube of \( 1.2 \mathrm{~mm} \) diameter is immersed vertically in water exposed to the atmosphere. Determine how high water will rise in the tube. Take the contact angle at the inner wall of the tube to be \( 6^{\circ} \) and the surface tension to be 1.00 \( \mathrm{N} / \mathrm{m} \). Answer: \( 0.338 \mathrm{~m} \)

ANSWERED

Eduard Sanchez

Numerade educator

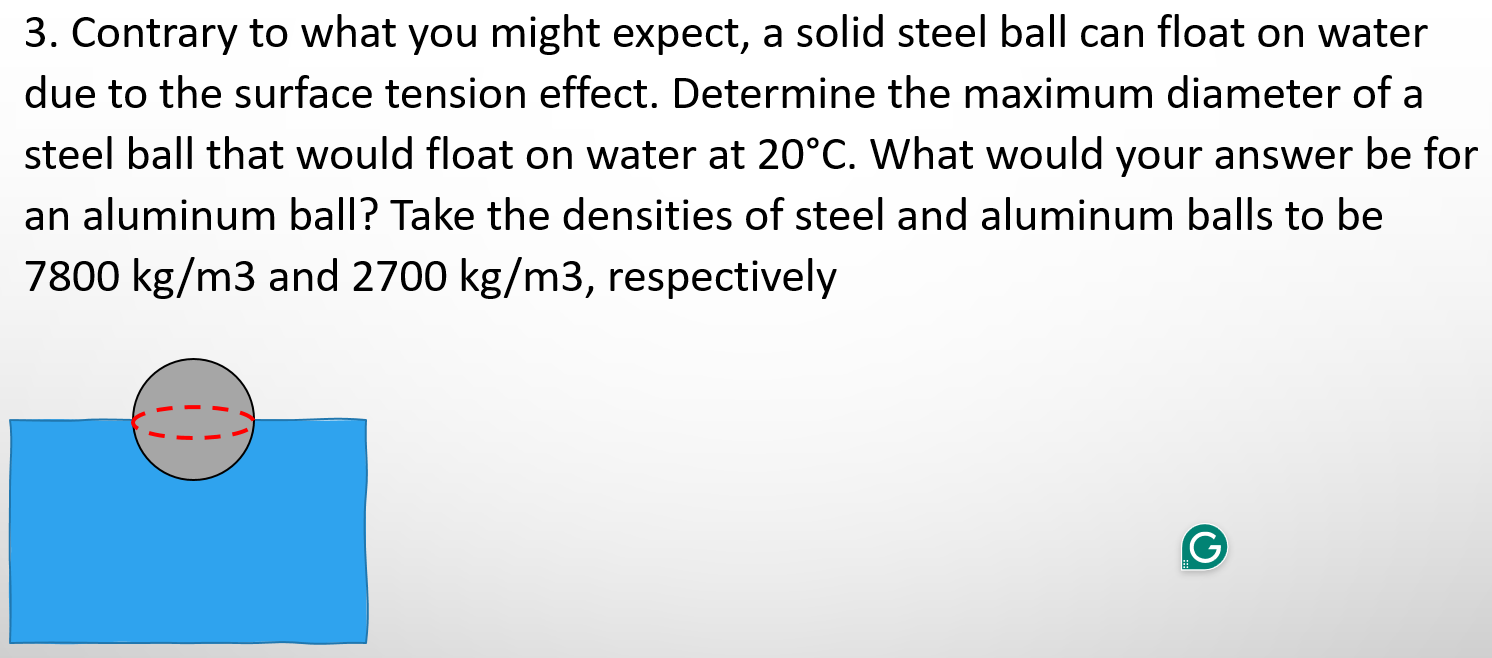

3. Contrary to what you might expect, a solid steel ball can float on water due to the surface tension effect. Determine the maximum diameter of a steel ball that would float on water at 20°C. What would your answer be for an aluminum ball? Take the densities of steel and aluminum balls to be 7800 kg/m3 and 2700 kg/m3, respectively

ANSWERED

Eduard Sanchez

Numerade educator

?

ANSWERED

Supratim Pal

Numerade educator

1. The surface tension of water in air is approximately 0.00518 lbf/ft. if the atmospheric pressure is 14.7psia, What is the pressure inside a droplet 0.01” in diameter?

ANSWERED

Sam Stansfield

Numerade educator

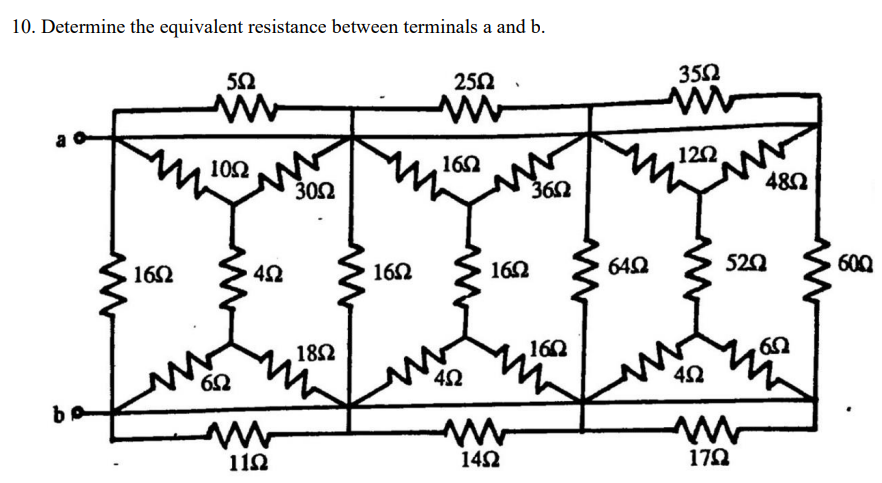

10. Determine the equivalent resistance between terminals a and b.

ANSWERED

Sam Stansfield

Numerade educator

9. Determine the equivalent resistance between terminals a and b.

ANSWERED

Nishant Kumar

Numerade educator

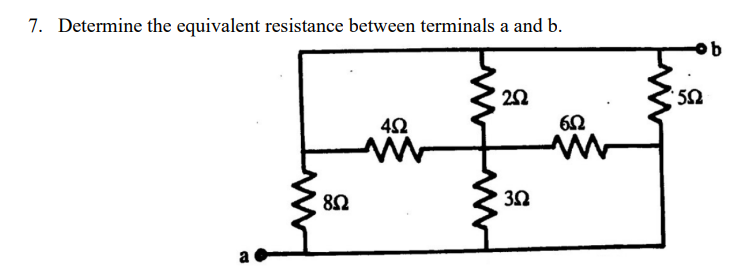

Determine the equivalent resistance between terminals a and b.

ANSWERED

Nishant Kumar

Numerade educator

Determine the equivalent resistance between terminals a and b.

INSTANT ANSWER

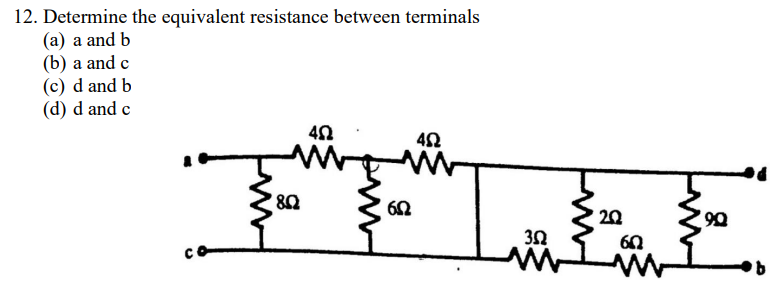

12. Determine the equivalent resistance between terminals (a) a and b (b) a and c (c) d and b (d) d and c

INSTANT ANSWER

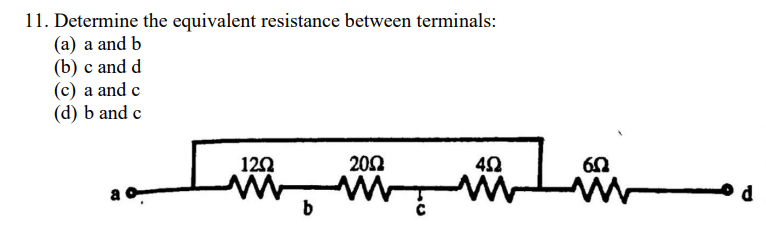

11. Determine the equivalent resistance between terminals: (a) a and b (b) c and d (c) a and c (d) b and c
