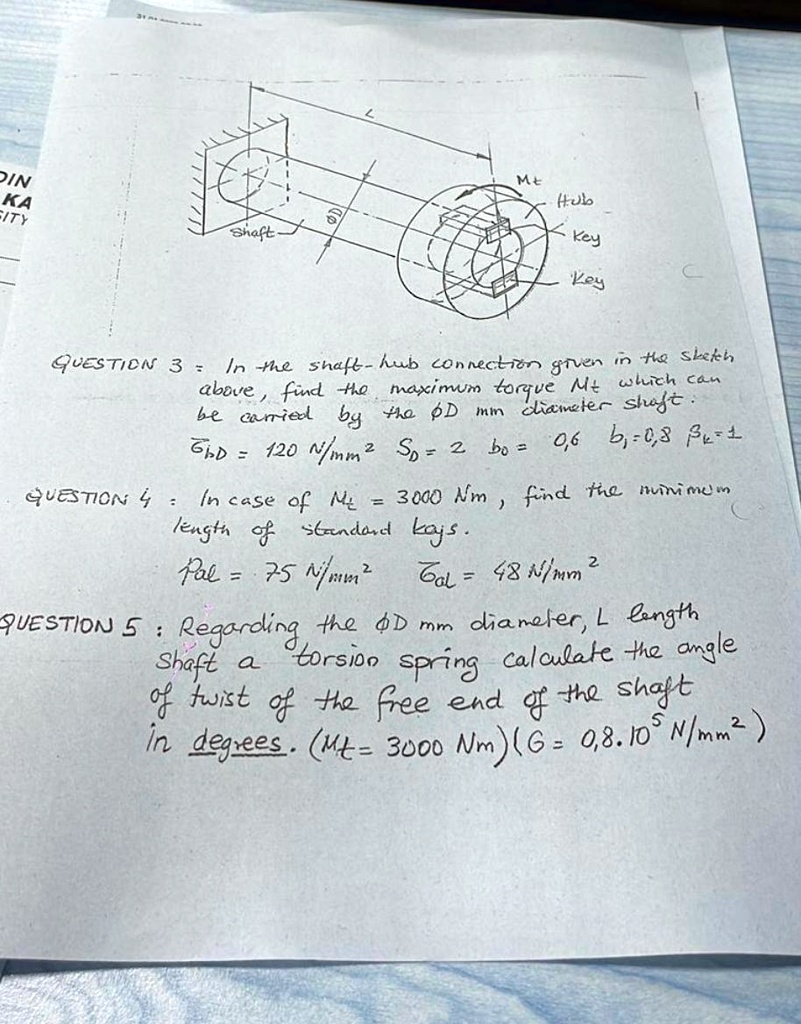

QUESTION 3: In the shaft-hub connection given in the sketch above, find the maximum torque M_(t) which can be carried by the ODmm diameter shaft.
σ_(hD) = 120(N)/m^2, S_(D) = 2, b_(0) = 0.6, b_(1) = 0.8, β_(k) = 1
QUESTION 4: In case of M_(t) = 3000Nm, find the minimum length of standard kajs.
Pae = 75(N)mm^2, σ_(al) = 48(N)/m^2
QUESTION 5: Regarding the φ Dmm diameter, L length shaft a torsion spring calculate the angle of twist of the free end of the shaft in degrees. (μ_(t)) = (3000Nm)(G) = (0.8*10^5)(N)/m^2
The required value 22, 4, 9, 975, and 110
OIN KA 1TY
Key
Veu
Length of standard kajs. Pae = 75Nmm Bol = 48N/mm^2
