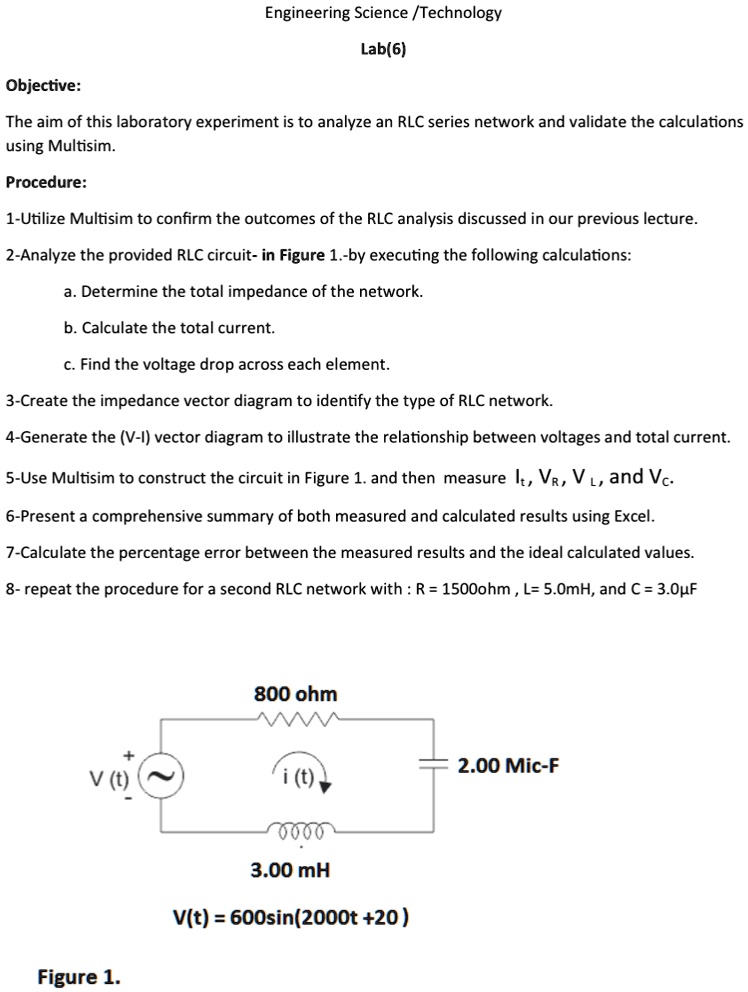

Engineering Science/Technology
Lab(6)
Objective:
The aim of this laboratory experiment is to analyze an RLC series network and validate the calculations
using Multisim.
Procedure:
1-Utilize Multisim to confirm the outcomes of the RLC analysis discussed in our previous lecture.
2-Analyze the provided RLC circuit- in Figure 1.-by executing the following calculations:
a. Determine the total impedance of the network.
b. Calculate the total current.
c. Find the voltage drop across each element.
3-Create the impedance vector diagram to identify the type of RLC network.
4-Generate the (V-I) vector diagram to illustrate the relationship between voltages and total current.
5-Use Multisim to construct the circuit in Figure 1. and then measure $I_t$, $V_R$, $V_L$, and $V_C$.
6-Present a comprehensive summary of both measured and calculated results using Excel.
7-Calculate the percentage error between the measured results and the ideal calculated values.
8- repeat the procedure for a second RLC network with: R = 1500ohm, L= 5.0mH, and C = 3.0µF
$V(t)$
800 ohm
+$
2.00 Mic-F
$i(t)$
3.00 mH
$V(t) = 600sin(2000t +20)$
Figure 1.
