ELCT 222 - Signals and Systems

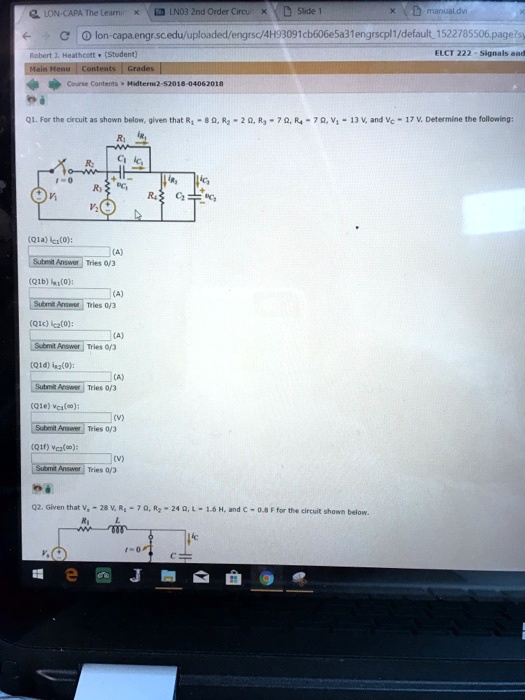

Q1. For the circuit as shown below, given that R1 = 8Ω, R2 = 2Ω, R3 = 7Ω, R4 = 7Ω, V = 13V, and Vc = 17V, determine the following:
a) IR1
b) IR2
c) IR3
d) IR4
e) Vc
Q2. Given that V = 60V and R = 1Ω, calculate the current (I) flowing through the circuit.
