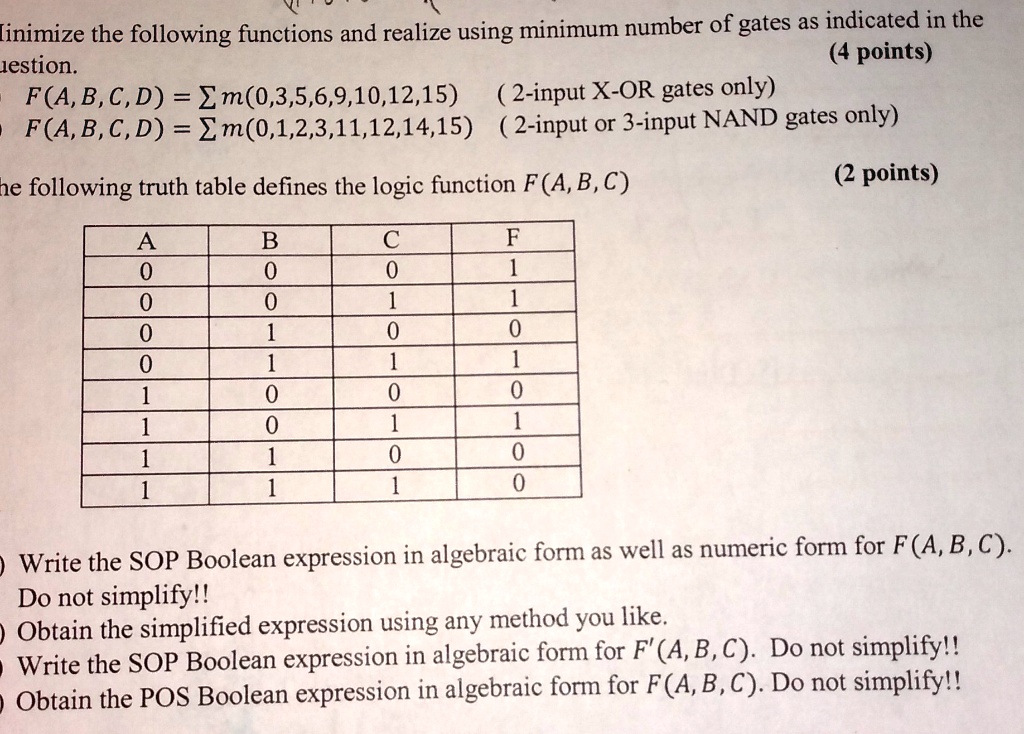

Minimize the following functions and realize using minimum number of gates as indicated in the
uestion.
-F(A,B,C,D) = ?m(0,3,5,6,9,10,12,15)
(4 points)
(2-input X-OR gates only)
? F(A, B, C, D) = ?m(0,1,2,3,11,12,14,15) (2-input or 3-input NAND gates only)
he following truth table defines the logic function F (A, B, C)
A
B
C
F
0
0
0
1
0
0
1
1
0
1
0
0
0
1
1
1
1
0
0
0
1
0
1
1
1
1
0
0
1
1
1
0
(2 points)
Write the SOP Boolean expression in algebraic form as well as numeric form for F (A, B, C).
Do not simplify!!
Obtain the simplified expression using any method you like.
? Write the SOP Boolean expression in algebraic form for F'(A, B, C). Do not simplify!!
Obtain the POS Boolean expression in algebraic form for F(A, B, C). Do not simplify!!
