Text: The network at any one time

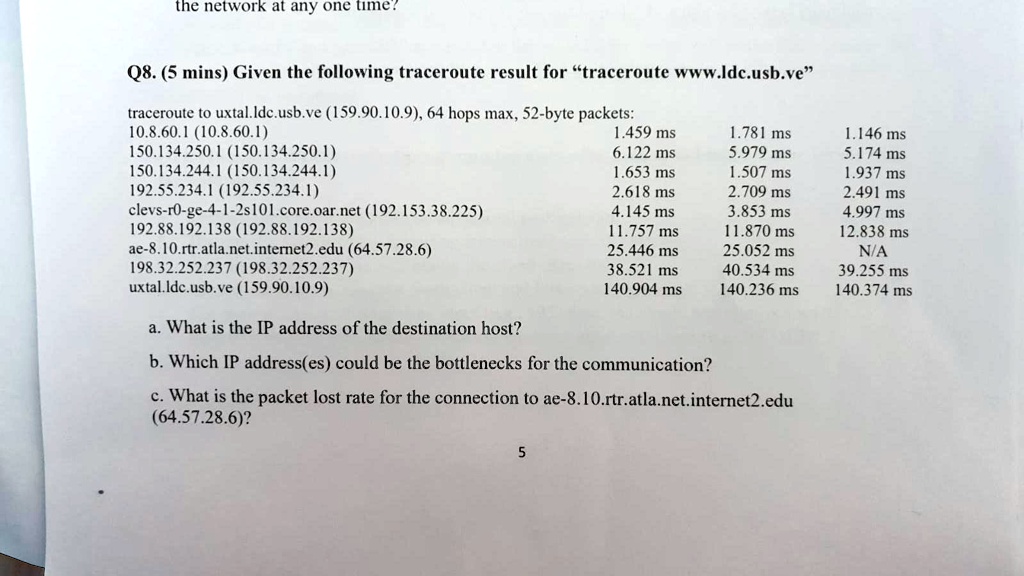

Q8. (5 mins) Given the following traceroute result for traceroute www.ldc.usb.ve
traceroute to uxtal.ldc.usb.ve (159.90.10.9), 64 hops max, 52-byte packets:
1. 10.8.60.1 (10.8.60.1) 1.459 ms
2. 150.134.250.1 (150.134.250.1) 6.122 ms
3. 150.134.244.1 (150.134.244.1) 1.653 ms
4. 192.55.234.1 (192.55.234.1) 2.618 ms
5. clevs-r0-ge-4-1-2s101.core.oar.net (192.153.38.225) 4.145 ms
6. 192.88.192.138 (192.88.192.138) 11.757 ms
7. ae-8.10.rtr.atla.net.internet2.edu (64.57.28.6) 25.446 ms
8. 198.32.252.237 (198.32.252.237) 38.521 ms
9. uxtal.ldc.usb.ve (159.90.10.9) 140.904 ms
1.781 ms 5.979 ms 1.507 ms 2.709 ms 3.853 ms 11.870 ms 25.052 ms 40.534 ms 140.236 ms
1.146 ms 5.174 ms 1.937 ms 2.491 ms 4.997 ms 12.838 ms N/A 39.255 ms 140.374 ms
a. What is the IP address of the destination host?
b. Which IP address(es) could be the bottlenecks for the communication?
c. What is the packet loss rate for the connection to ae-8.10.rtr.atla.net.internet2.edu (64.57.28.6)?
