Name
Section

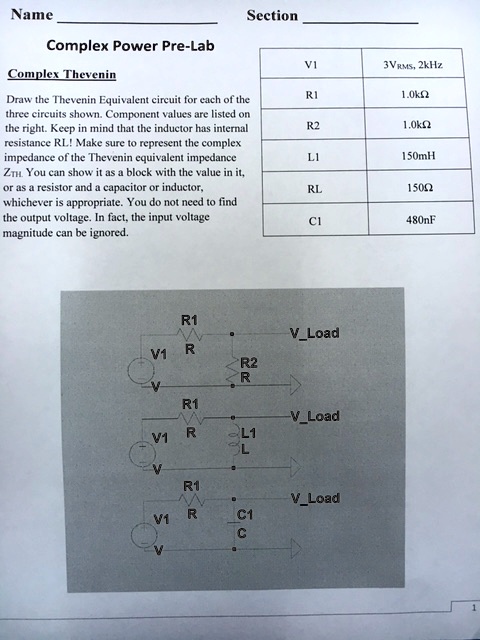

Complex Power Pre-Lab
V1
3VRMS, 2kHz
Complex Thevenin
R1
1.0??
Draw the Thevenin Equivalent circuit for each of the
three circuits shown. Component values are listed on
the right. Keep in mind that the inductor has internal
resistance RL! Make sure to represent the complex
R2
1.0??
impedance of the Thevenin equivalent impedance
ZTH. You can show it as a block with the value in it,
or as a resistor and a capacitor or inductor,
whichever is appropriate. You do not need to find
the output voltage. In fact, the input voltage
magnitude can be ignored.
L1
150mH
RL
150?
C1
480nF
R1
V_Load
V1
R
R2
R
V
R1
-V_Load
V1
R
L1
L
V
R1
W
V_Load
V1
R
C1
C
V
1
