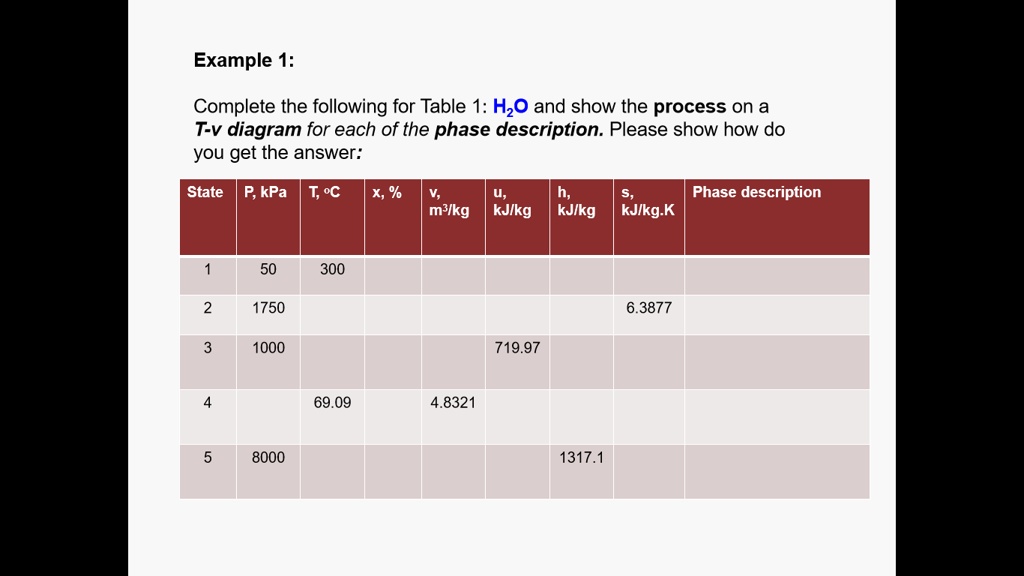

Example 1:
Complete the following for Table 1: H?O and show the process on a
T-v diagram for each of the phase description. Please show how do
you get the answer:
State P, kPa T, °C x, % v, m³/kg u, kJ/kg h, kJ/kg s, kJ/kg.K Phase description
1 50 300
2 1750
3 1000 719.97
4 69.09 4.8321
5 8000 1317.1
6.3877
