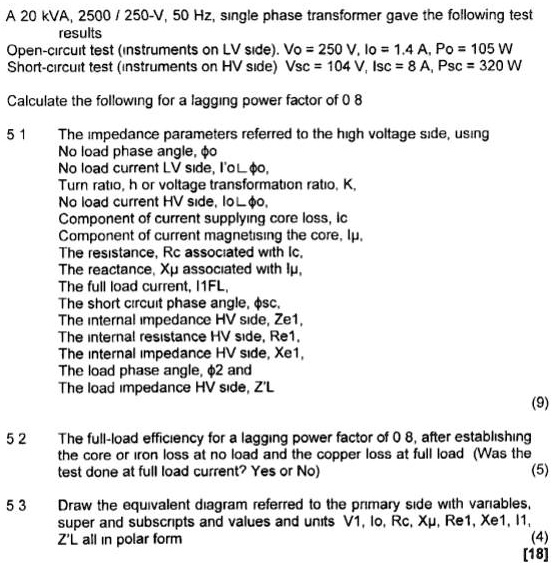

Open-circuit testing instruments on LV side. Vo=250V, Io=1.4A, Po=105W. Short-circuit testing instruments on HV side. Vsc=104V, Isc=8A, Psc=320W.
Calculate the following for a lagging power factor of 0.8:
1. The impedance parameters referred to the high voltage side, using No load phase angle, θo.
2. No load current on LV side, Io.
3. Turn ratio, h or voltage transformation ratio, K.
4. No load current on HV side, Io'.
5. Component of current supplying core loss, Ic.
6. Component of current magnetizing the core, I.
7. The resistance, Rc, associated with Ic.
8. The reactance, X, associated with I.
9. The full load current, I1FL.
10. The short circuit phase angle, θsc.
11. The internal impedance HV side, Ze1.
12. The internal resistance HV side, Re1.
13. The internal impedance HV side, Xe1.
14. The load phase angle, θ2.
15. The load impedance HV side, Z'L.
