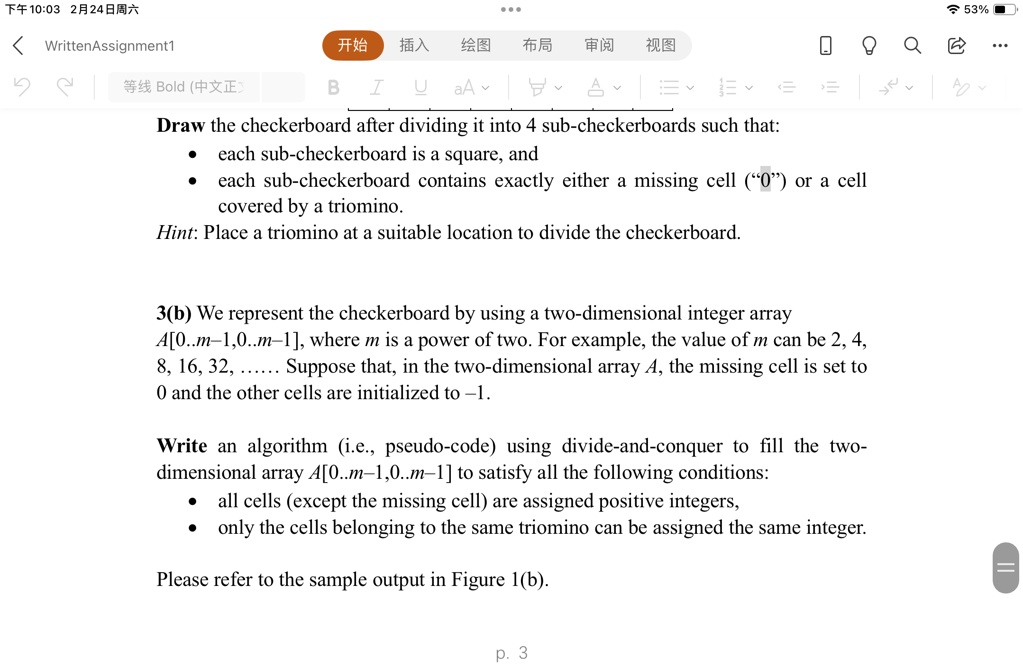

Draw the checkerboard after dividing it into 4 sub-checkerboards such that:
• each sub-checkerboard is a square, and
• each sub-checkerboard contains exactly either a missing cell ("0") or a cell
covered by a triomino.
Hint: Place a triomino at a suitable location to divide the checkerboard.
3(b) We represent the checkerboard by using a two-dimensional integer array
A[0..m-1,0..m-1], where m is a power of two. For example, the value of m can be 2, 4,
8, 16, 32, .... Suppose that, in the two-dimensional array A, the missing cell is set to
0 and the other cells are initialized to -1.
Write an algorithm (i.e., pseudo-code) using divide-and-conquer to fill the two-
dimensional array A[0..m-1,0..m-1] to satisfy all the following conditions:
• all cells (except the missing cell) are assigned positive integers,
• only the cells belonging to the same triomino can be assigned the same integer.
Please refer to the sample output in Figure 1(b).
p. 3
