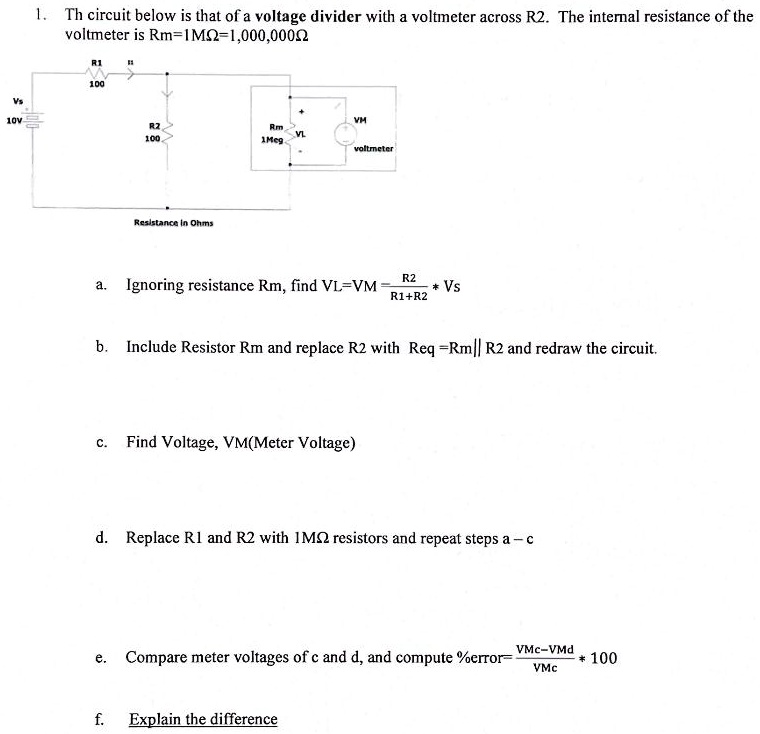

1. Th circuit below is that of a voltage divider with a voltmeter across R2. The internal resistance of the
voltmeter is Rm=1??=1,000,000?
R1
100
Vs
10V
VM
R2
100
Rm
1Meg
VL
voltmeter
Resistance in Ohms
a. Ignoring resistance Rm, find VL=VM = \frac{R2}{R1+R2} * Vs
b. Include Resistor Rm and replace R2 with Req=Rm|| R2 and redraw the circuit.
c. Find Voltage, VM(Meter Voltage)
d. Replace R1 and R2 with 1?? resistors and repeat steps a - c
e. Compare meter voltages of c and d, and compute %error= \frac{VMc-VMd}{VMc} * 100
f. Explain the difference
