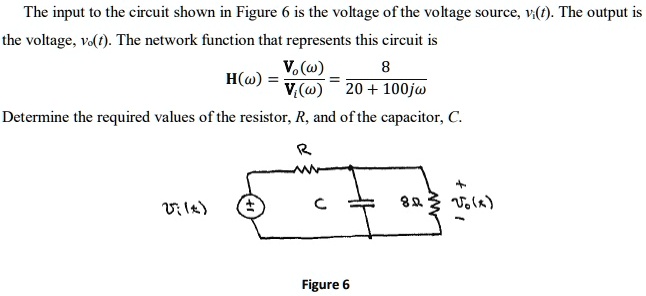

The input to the circuit shown in Figure 6 is the voltage of the voltage source, v_(i)(t). The output is
the voltage, v_(o)(t). The network function that represents this circuit is
H(omega )=(V_(o)(omega ))/(V_(i)(omega ))=(8)/(20+100jomega )
Determine the required values of the resistor, R, and of the capacitor, C.
Figure 6
The input to the circuit shown in Figure 6 is the voltage of the voltage source, vi(t). The output is the voltage, vo(t). The network function that represents this circuit is V.(w 8 H()= 20+100j
Determine the required values of the resistor,R, and of the capacitor,C
R
21
82
Vo()
Figure6
