Question 5

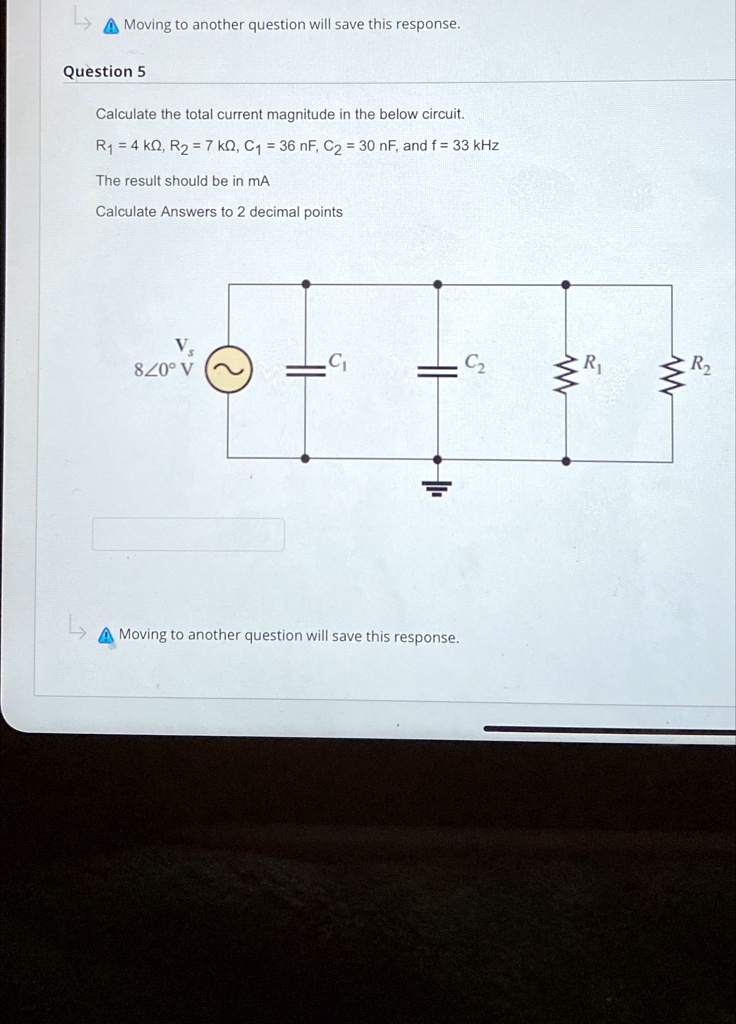

Calculate the total current magnitude in the below circuit.
$R_1 = 4 \text{ k}\Omega$, $R_2 = 7 \text{ k}\Omega$, $C_1 = 36 \text{ nF}$, $C_2 = 30 \text{ nF}$, and $f = 33 \text{ kHz}$
The result should be in mA
Calculate Answers to 2 decimal points
$V_s$
$8\angle 0^\circ \text{ V}$
$C_1$
$C_2$
$R_1$
$R_2$
