Questions 5, 6, 7, 8, and 9

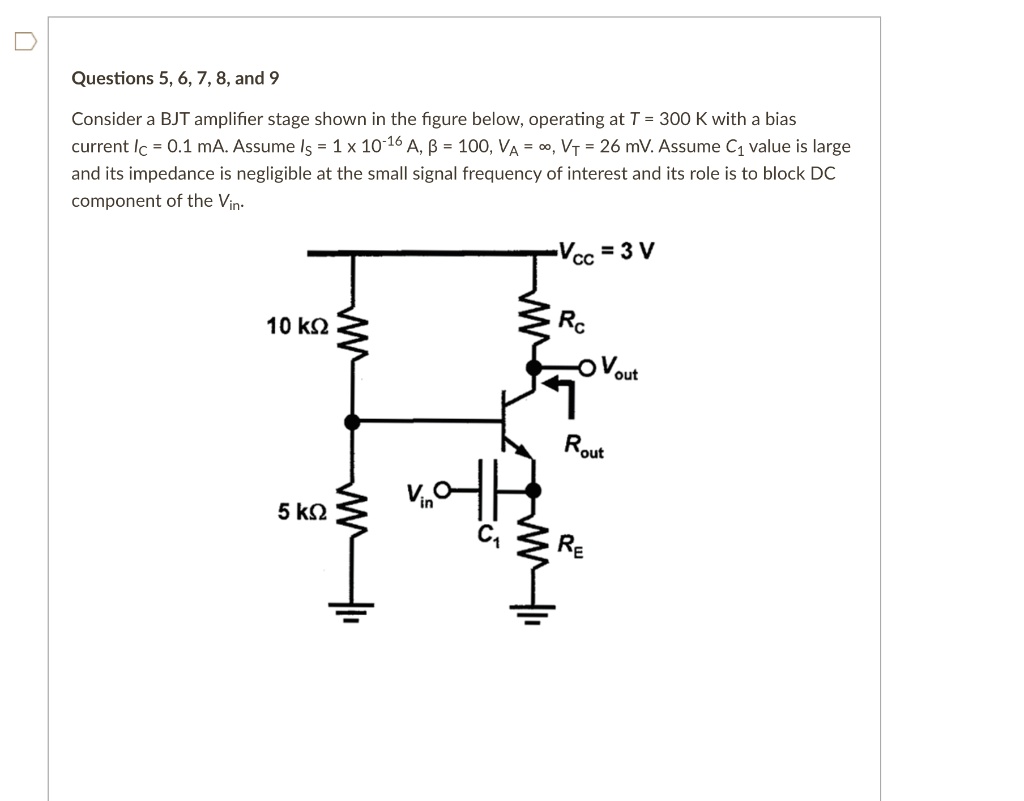

Consider a BJT amplifier stage shown in the figure below, operating at T = 300 K with a bias
current $I_C = 0.1$ mA. Assume $I_S = 1 \times 10^{-16}$ A, $\beta = 100$, $V_A = \infty$, $V_T = 26$ mV. Assume $C_1$ value is large
and its impedance is negligible at the small signal frequency of interest and its role is to block DC
component of the $V_{in}$.
$V_{CC} = 3$ V
10 k$\Omega$
$R_C$
$V_O$
5 k$\Omega$
$R_{out}$
$C_1$
$R_E$
$V_{out}$
