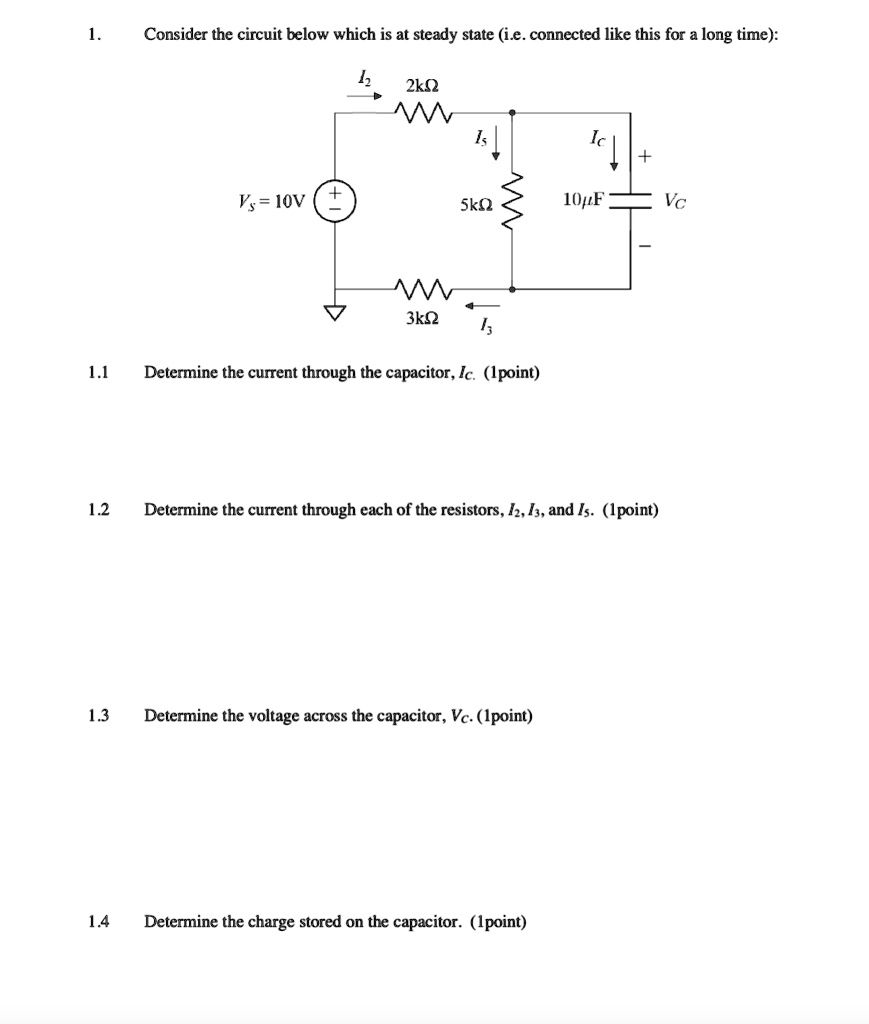

1. Consider the circuit below which is at steady state (i.e. connected like this for a long time):
$I_2$ 2k$\Omega$
$I_5$ $I_C$
+
$V_S$ = 10V
5k$\Omega$ 10$\mu$F $V_C$
3k$\Omega$ $I_3$
1.1 Determine the current through the capacitor, $I_C$. (1point)
1.2 Determine the current through each of the resistors, $I_2$, $I_3$, and $I_5$. (1point)
1.3 Determine the voltage across the capacitor, $V_C$. (1point)
1.4 Determine the charge stored on the capacitor. (1point)
