Suppose the memory cells at addresses 0x00 through 0x09 in the Vole contain the following bit patterns:
able[[Address,Contents],[0x00,0x1C],[0x01,0x03],[0x02,0x2B],[0x03,0x03],[0x04,0x5A],[0x05,0xBC],[0x06,0x3A],[0x07,0x00],[0x08,0xC0],[0x09,0x00]]
Assume that the machine starts with its program counter containing 0 imes 00.
a. What will be in the memory cell at address 0x00 when the machine halts?
b. What bit pattern will be in the program counter when the machine halts?

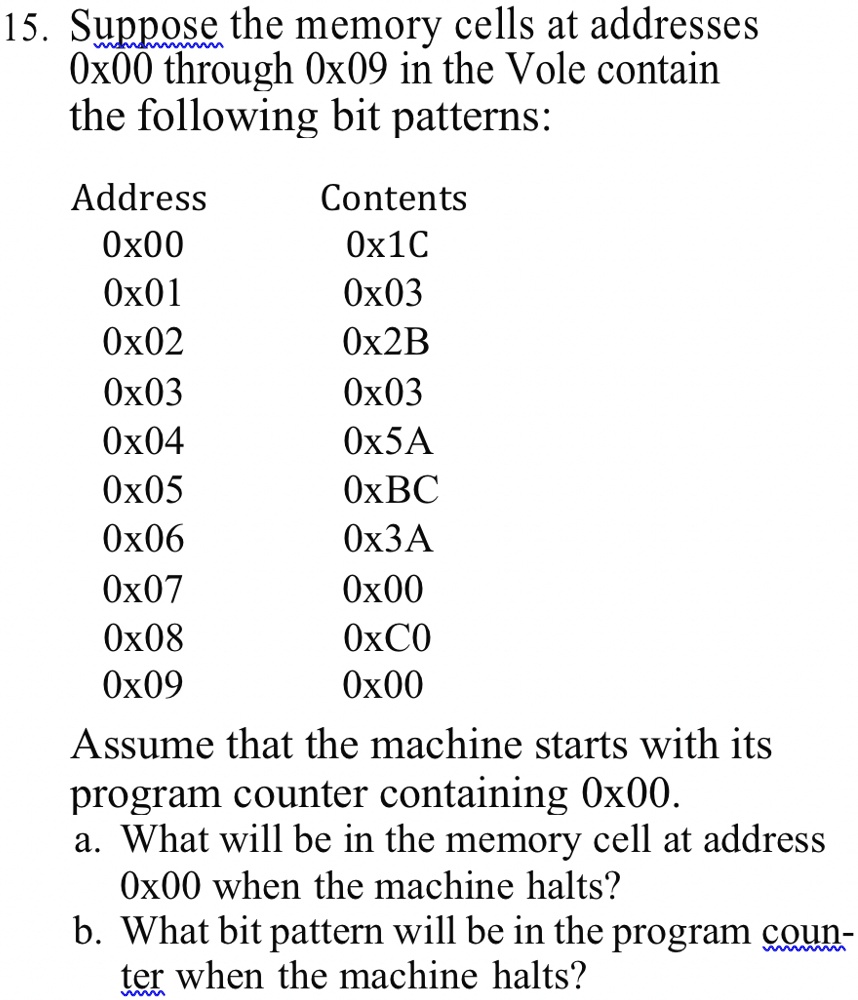

15. Suppose the memory cells at addresses 0x00 through 0x09 in the Vole contain the following bit patterns:
Address 0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09
Contents 0x1C 0x03 0x2B
0x03 0x5A 0xBC 0x3A
0x00 0xC0 0x00
Assume that the machine starts with its
program counter containing 0x00. a. What will be in the memory cell at address 0x00 when the machine halts? b. What bit pattern will be in the program coun. ter when the machine halts?
