1 Open Circuit Voltage, Short Circuit Current, and Equivalent Resistance

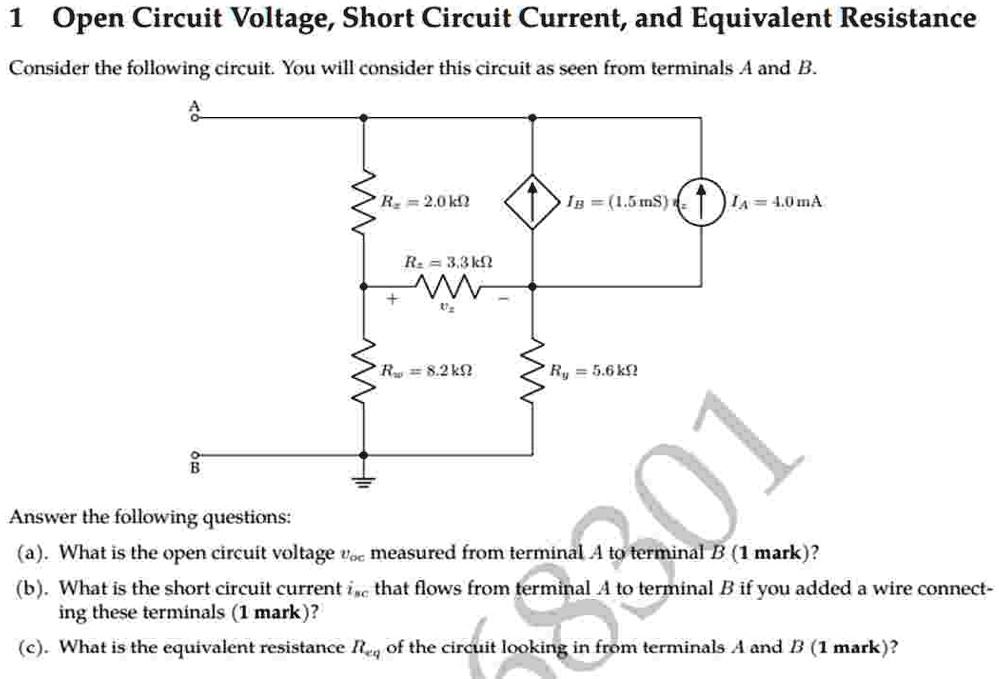

Consider the following circuit. You will consider this circuit as seen from terminals A and B.
$R_g = 2.0 k\Omega$
$I_B = (1.5 mS)$
$I_A = 4.0 mA$
$R_z = 3.3 k\Omega$
$v_z$
$R_w = 8.2 k\Omega$
$R_y = 5.6 k\Omega$
Answer the following questions:
(a). What is the open circuit voltage $v_{oc}$ measured from terminal A to terminal B (1 mark)?
(b). What is the short circuit current $i_{sc}$ that flows from terminal A to terminal B if you added a wire connecting these terminals (1 mark)?
(c). What is the equivalent resistance $R_{eq}$ of the circuit looking in from terminals A and B (1 mark)?
